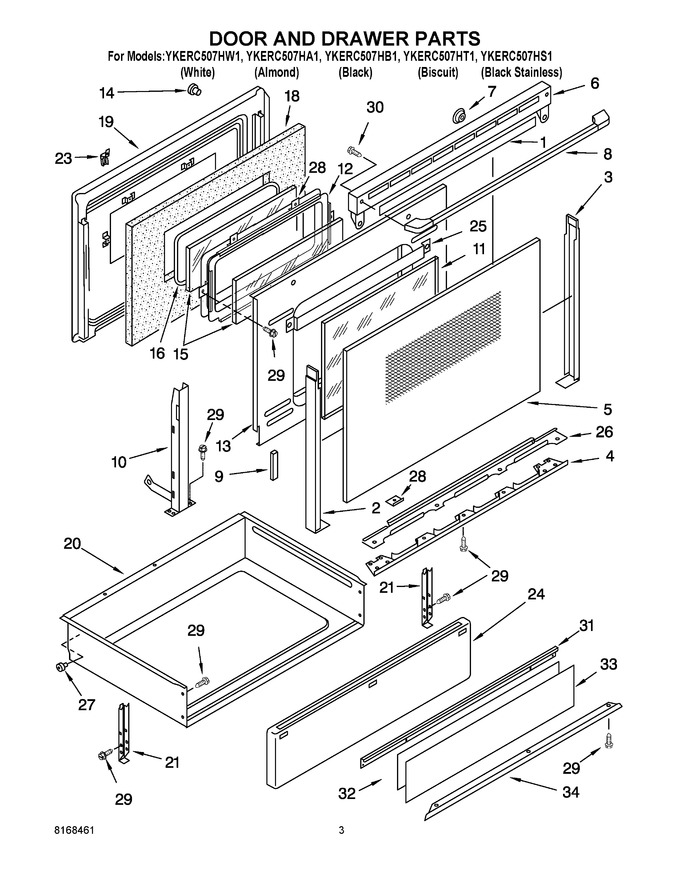

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9781659 | Gasket, Glass |
|
- | |||||
| 2 | 9750631PW | Trim, Door-left (white) |
|
- | |||||
| 3 | 9750632PW | Trim, Door-right (white) |
|
- | |||||
| 4 | 9781209PW | Trim, Door Bottom (white) |
|
- | |||||
| 5 | 9781627PW | Glass, Door (white) |
|
- | |||||
| 6 | 9753498GW | Vent, Door (white) |
|
- | |||||
| 7 | 9781502 | Spacer, Door |
|
- | |||||
| 8 | 9780523PW | Handle, Door (white) |
|
- | |||||
| 9 | 9781449 | Gasket, Door Glass |
|
- | |||||
| 10 | WP9782033 | Hinge, Door R Or L (Replaces: 9750234) |
|
Immediately | $ 208.67 | ||||
| 11 | 9781592 | Baffle, Glass |
|
- | |||||
| 12 | 9781602 | Frame, Window |
|
- | |||||
| 13 | 9781586 | Shield Door |
|
- | |||||
| 14 | 238614 | Bumper, Rubber (Replaces: 9780771) |
|
$ 72.68 | |||||
| 15 | WP9781593 | Glass, Door (2) (Replaces: 9781593) |
|
$ 116.35 | |||||
| 16 | 9781587 | Seal, Window |
|
- | |||||
| 18 | 9754006 | Insulation |
|
- | |||||
| 19 | 9781600GM | Liner, Door |
|
$ 140.49 | |||||
| 20 | 9780583 | Drawer & Roller (white, Almond, Black & Biscuit Models) |
|
- | |||||
| 21 | 9750169 | Bracket, Drawer |
|
- | |||||
| 23 | 9750676 | Retainer,door |
|
- | |||||
| 24 | 9750168PW | Front, Drawer (white) |
|
- | |||||
| 25 | 9750693 | Channel, Heat |
|
- | |||||
| 26 | 9781771 | Steam Deflector |
|
- | |||||
| 27 | 814229 | Roller, Support(2) (Replaces: 423713) |
|
Immediately | $ 51.23 | ||||
| 28 | 9781502 | Spacer, Door |
|
- | |||||
| 29 | 9780265 | Screw, 10-16 X 3/8 |
|
- | |||||
| 30 | WPW10001180 | Screw, 10-24 X 3/8 (Replaces: 9781072) |
|
$ 7.23 | |||||
| 31 | 9750614PB | Trim, Glass Top |
|
- | |||||
| 32 | 9753329 | Cushion, Insert |
|
- | |||||
| 33 | 9753293 | Insert, Stainless |
|
- | |||||
| 34 | 9750613PB | Trim, Glass Bottom |
|
- | |||||
| 20A | 9750257 | Drawer & Roller (black Stainless Model) |
|
- | |||||
| 24A | 9750168PT | Front, Drawer (almond) |
|
- | |||||
| 24B | 9750168PB | Front, Drawer (black) |
|
- | |||||
| 24C | 9750168PC | Front, Drawer (biscuit) |
|
- | |||||
| 24D | 9750569PB | Front, Drawer (black Stainless) |
|
- | |||||
| 24E | WP90296 | Front, Drawer (clip) (Replaces: 90296) |
|
$ 7.07 | |||||
| 2A | 9750631PT | Trim, Door-left (almond) |
|
- | |||||
| 2B | 9750631PB | Trim, Door-left (black) |
|
- | |||||
| 2C | 9750631PC | Trim, Door-left (biscuit) |
|
- | |||||
| 3A | 9750632PT | Trim, Door-right (almond) |
|
- | |||||
| 3B | 9750632PB | Trim, Door-right (black) |
|
- | |||||
| 3C | 9750632PC | Trim, Door-right (biscuit) |
|
- | |||||
| 4A | 9781209PT | Trim, Door Bottom (almond) |
|
- | |||||
| 4B | 9781209PB | Trim, Door Bottom (black) |
|
- | |||||
| 4C | 9781209PC | Trim, Door Bottom (biscuit) |
|
- | |||||
| 5A | 9781627PT | Glass, Door (almond) |
|
- | |||||
| 5B | 9781627PB | Glass, Door (black) |
|
$ 153.46 | |||||
| 5C | 9781627PC | Glass, Door (white) |
|
- | |||||
| 6A | 9753498GT | Vent, Door (almond) |
|
- | |||||
| 6B | 9753498GB | Vent, Door (black) |
|
- | |||||
| 6C | 9753498GC | Vent, Door (biscuit) |
|
- | |||||
| 6D | 9781490 | Vent, Door (gasket, Vent Side) |
|
- | |||||
| 8A | 9780523PT | Handle, Door (almond) |
|
- | |||||
| 8B | 9780523PB | Handle, Door (black) |
|
- | |||||
| 8C | 9780523PC | Handle, Door (biscuit) |
|
- |
