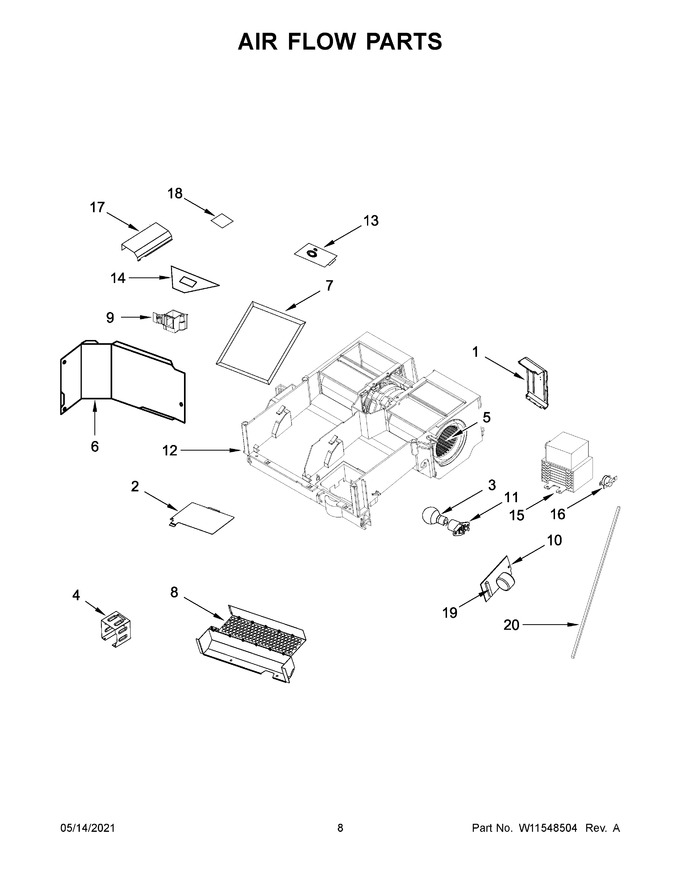

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10631697 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | W11556218 | Lamp, Cavity (125v 30w) (Replaces: W11331637) |
|
$ 12.23 | |||||
| 4 | W10712444 | Housing, Damper |
|
$ 82.58 | |||||
| 5 | W11442100 | Motor, Fan (400 Cfm) (Replaces: W11409097) |
|
Immediately | $ 176.10 | ||||
| 6 | W10869223 | Plate, Air Deflector |
|
- | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 8 | W10715053 | Shield, Finger |
|
- | |||||
| 9 | W10570208 | Outlet, Cavity (front) |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 48.75 | ||||
| 11 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 29.89 | ||||
| 12 | W10533116 | Plate, Air Deflector |
|
$ 22.56 | |||||
| 13 | W11590866 | Sensor, Humidity (Replaces: W11381423) |
|
$ 60.67 | |||||
| 14 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 15 | W10818686 | Magnetron (Replaces: W10754514) |
|
Immediately | $ 221.27 | ||||
| 16 | W10864741 | Thermostat, Magnetron |
|
$ 78.62 | |||||
| 17 | W10533111 | Outlet, Cavity (back) |
|
- | |||||
| 18 | W10531724 | Glass, Lamp |
|
Immediately | $ 29.90 | ||||
| 19 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 20 | W10626457 | Seal |
|
- |
