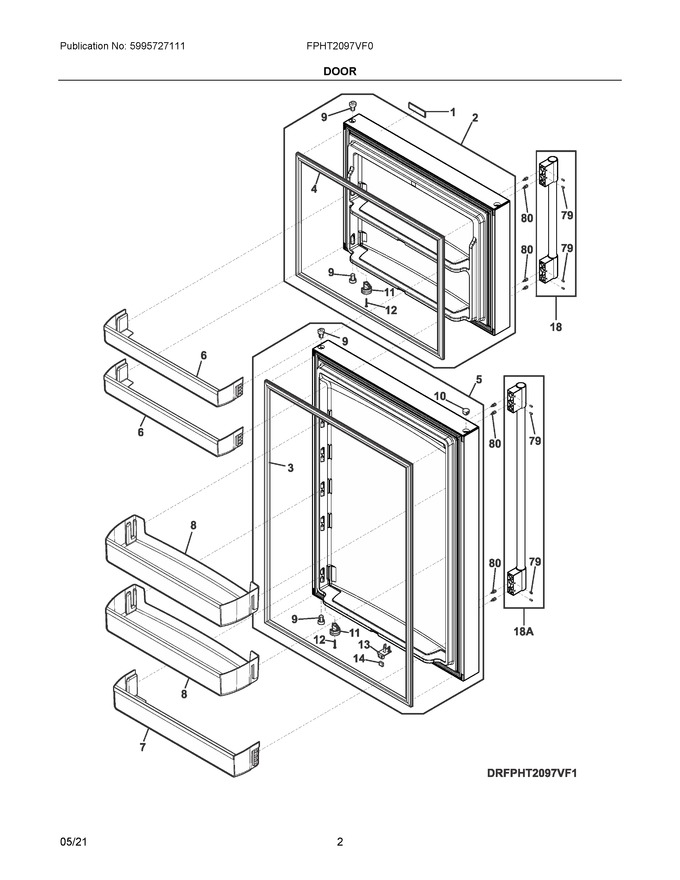

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809108704		Nameplate, Frig Pro   (Replaces: 809108701)			Immediately	$ 44.19
2	5304529103		Door Assembly, Freezer, Ez Stainless, W/gasket-hrdwre		Appelez-nous	-
3	5304528903		Gasket, Door, Gray, Fresh Food			Immediately	$ 205.12
4	5304528904		Gasket, Door, Gray, Freezer			Immediately	$ 180.01
5	5304529101		Door Assembly, Fresh Food, Ez Stainless, W/gasket-hrdwre		Appelez-nous	-
6	5304528879		Bin, Door, Freezer				$ 89.85
7	5304528877		Bin, Door, 4", Clear, Fresh Food				$ 89.85
8	140137082024		Bin, Door, 6", Clear, Fresh Food   (Replaces: 5304528878)		Appelez-nous	-
9	5304522194		Bearing, Hinge, Gray			Immediately	$ 2.28
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 7.44
11	5304522238		Hook, Door Closer, Gray			Immediately	$ 8.34
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
13	5304528883		Housing, Sensor Magnet, Ff Door			Immediately	$ 9.10
14	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
18	5304529036		Handle, Freezer Door, Stainless		Appelez-nous	-
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
18A	5304536767		Handle Assembly, Stainless, W/set Screws   (Replaces: 5304501174)			Immediately	$ 111.76
NIA	241601002		Wrench, Allen		Appelez-nous	-
