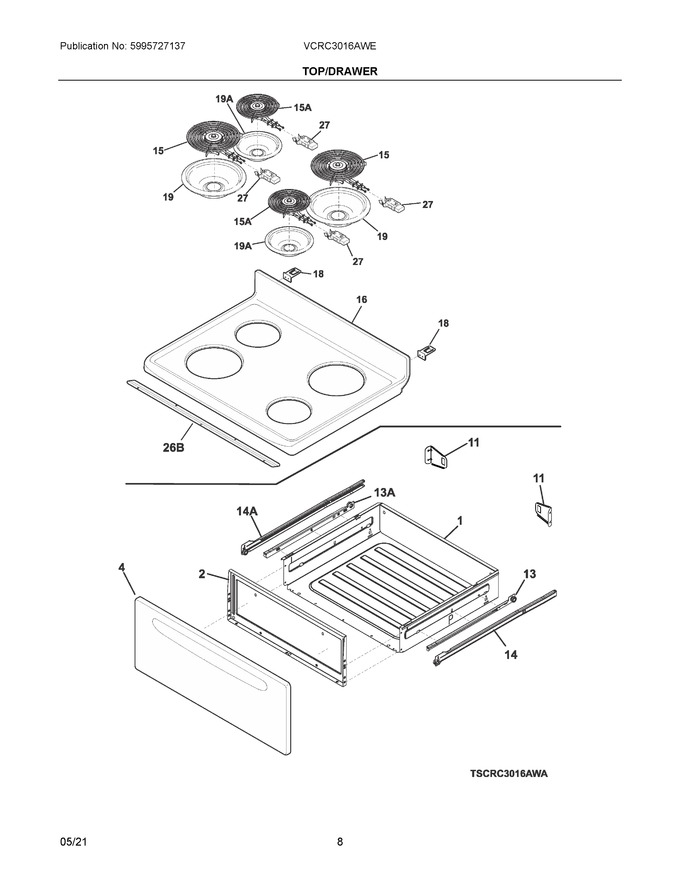

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527989		Liner, Drawer				$ 28.83
4	5304511973		Panel, Drawer, White, Outer, W/intgr Handle				$ 100.05
11	5304517906		Bracket, Rear Support, (2)				$ 11.38
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	5304516159		Element, Surface, 8", W/limiter			Immediately	$ 78.12
16	5304531767		Main Top, White, W/brkt   (Replaces: 316610037)				$ 147.67
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
19	A316222301		Pan-surface Element, Large, Black, (2)   (Replaces: 318067075)			Immediately	$ 12.53
27	5304522939		Harness, Surface		Appelez-nous	-
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	5304516160		Element, Surface, 6", W/limiter			Immediately	$ 68.96
19A	A316222201		Pan-surface Element, Small, Black, (2)   (Replaces: 318067076)			Immediately	$ 14.64
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316045000		Clip, Wiring Harness, Green, Main Top		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5308014215		Screw, 6-20 X 0.312				$ 2.28
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03

    View Diagram in Separate Window       Print Part List
