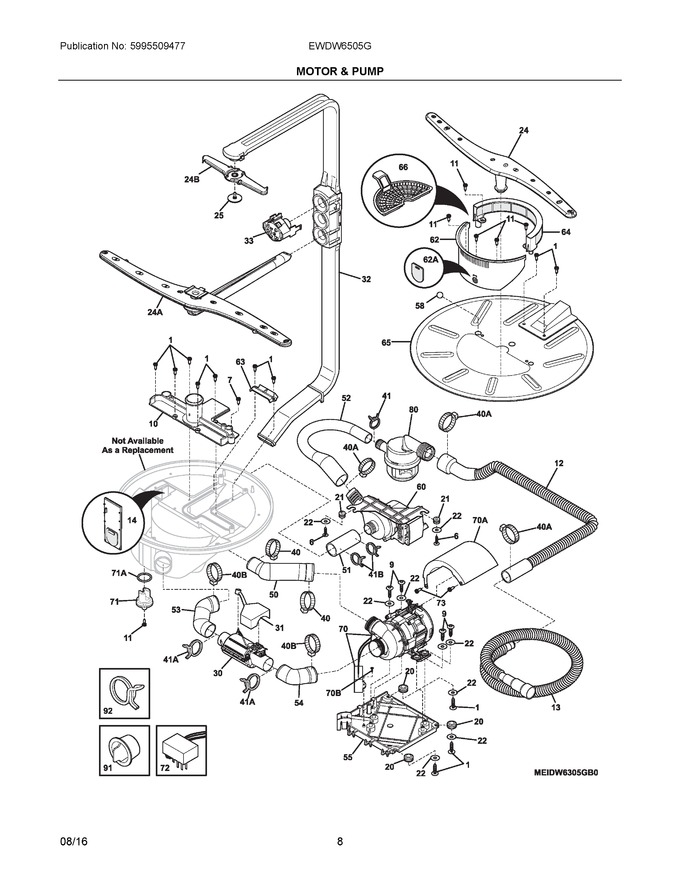

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154518001 | Screw, Pan Head, #10-16 X .8 (Replaces: 7154518001) |
|
$ 10.54 | |||||
| 6 | 7154518301 | Screw, 6 Lobe Recess, #8-18 |
|
- | |||||
| 7 | 7154673501 | Screw, 6 Lobe Recess, #10 Hi Lo |
|
- | |||||
| 9 | 7154625701 | Screw, #8-18 Hi Lo |
|
- | |||||
| 10 | 7154602001 | Support, Lower Spray Arm |
|
- | |||||
| 11 | 75303316032 | Screw, Truss Ss, 8 .625, (7) |
|
- | |||||
| 12 | 7154654801 | Hose, Drain, Intermediate |
|
- | |||||
| 13 | 5304521094 | Hose, Drain, Main (Replaces: 7154654901) |
|
Immediately | $ 49.28 | ||||
| 14 | 7154511801 | Check Valve, Assembly, Drain, W/flapper |
|
- | |||||
| 20 | 7154678602 | Grommet, Vibration, (3) |
|
- | |||||
| 21 | 7154672502 | Grommet, Vibration, (2) |
|
- | |||||
| 22 | 75300809968 | Washer |
|
- | |||||
| 24 | 7154610001 | Spray Arm, Assembly, Lower |
|
- | |||||
| 25 | 7154650102 | Pin, Spray Arm, Upper |
|
- | |||||
| 30 | 7154503701 | Heater, Inline, Water, 1200w |
|
- | |||||
| 31 | 7154622901 | Cover, Inline Heater |
|
- | |||||
| 32 | 7154515602 | Tubing Assembly, Delivery, W/check Valve |
|
- | |||||
| 33 | 7154616502 | Nozzle Assembly, Mid Level |
|
- | |||||
| 40 | 154611101 | Clamp, Hose, 1.29" Open, Worm Gear, (2) (Replaces: 7154106801) |
|
$ 12.05 | |||||
| 41 | 154348401 | Clamp, Hose, Red, Push Spring, (3) (Replaces: 7154348401) |
|
$ 32.96 | |||||
| 50 | 154679602 | Hose, Sump To, Motor, Circulation (Replaces: 7154679602) |
|
$ 35.71 | |||||
| 51 | 154757702 | Hose, Sump To, Drain Pump (Replaces: 7154491202) |
|
$ 12.01 | |||||
| 52 | 7154622402 | Hose, Drain Pump, To Drain Valve |
|
- | |||||
| 53 | 7154653201 | Hose, Sump To, Inline Heater |
|
- | |||||
| 54 | 7154653301 | Hose, Inline Heater, To Motor |
|
- | |||||
| 55 | 7154677101 | Plate, Motor Mounting |
|
- | |||||
| 58 | 7154512401 | Check Ball |
|
- | |||||
| 60 | 154757901 | Pump Assembly, Drain, W/bracket (Replaces: 7154618701) |
|
$ 126.86 | |||||
| 62 | 7154600702 | Filter Assembly, Vertical, W/flapper |
|
- | |||||
| 63 | 7154513501 | Cover, Delivery Tube |
|
- | |||||
| 64 | 7154604502 | Filter Assembly, Fine Soil, Pressurized |
|
- | |||||
| 65 | 7154624901 | Filter Assembly, Coarse Soil, W/chimney |
|
- | |||||
| 66 | 7154514302 | Trap, Glass |
|
- | |||||
| 70 | 154614002 | Motor & Pump Assy, Circulation, W/capacitor (Replaces: 7154614001) |
|
Immediately | $ 354.23 | ||||
| 71 | 154473901 | Sensor, Turbidity (Replaces: 7154473901) |
|
$ 213.26 | |||||
| 72 | 154655901 | Sensor, Leak Detector (Replaces: 7154655901) |
|
$ 105.61 | |||||
| 73 | 7154518401 | Screw, 6 Lobe Recess, #8-32 |
|
- | |||||
| 80 | 154622001 | Drain Valve, Assembly, Stepper (Replaces: 7154622001) |
|
$ 186.52 | |||||
| 91 | 7154676701 | Plug, Drain Hose |
|
- | |||||
| 92 | 7154348502 | Clamp, Red, Hose |
|
- | |||||
| 24A | 7154508201 | Spray Arm, Assembly, Middle, W/manifold |
|
- | |||||
| 24B | 7154649502 | Spray Arm, Assembly, Upper |
|
- | |||||
| 40A | 154380601 | Clamp, Hose, 1.5" Open, Worm Gear, (5) (Replaces: 7154380601) |
|
$ 73.71 | |||||
| 40B | 7154672601 | Clamp, Hose, 1.75" Open, Worm Gear, (2) |
|
- | |||||
| 41A | 154611101 | Clamp, Spring, Red, (2) (Replaces: 7154611101) |
|
$ 12.05 | |||||
| 41B | 7154691501 | Clamp, Spring, (2) |
|
- | |||||
| 62A | 7154511601 | Flapper, Drain Check |
|
- | |||||
| 70A | 7154656401 | Shield, Motor, Circulation |
|
- | |||||
| 70B | 7154614401 | Screw, Capacitor Mtg. |
|
- | |||||
| 71A | 154376001 | O-ring, Turbidity (Replaces: 7154376001) |
|
$ 7.71 | |||||
| NIA | 7154627001 | Harness, Wiring, Turbidity |
|
- |
