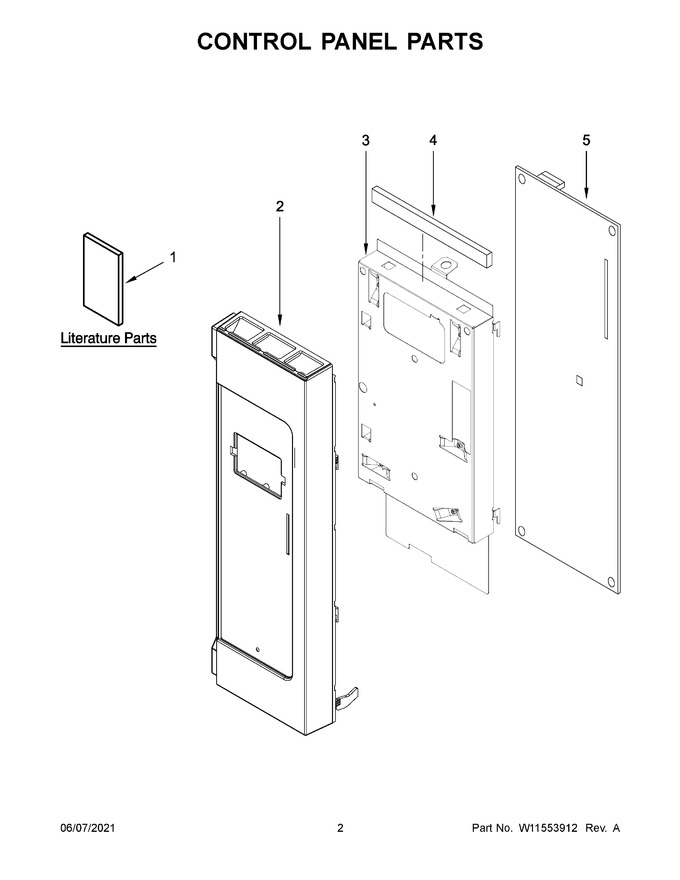

02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10823831 | Installation Instructions |
|
- | |||||
| 2 | W11252185 | Control Panel Assembly (includes Lens And Membrane Switch) (white) (Replaces: W11247222) |
|
$ 81.86 | |||||
| 3 | W11676791 | Backer, Control (Replaces: W10833365) |
|
$ 48.91 | |||||
| 4 | W10833531 | Seal, Control |
|
$ 21.01 | |||||
| 5 | W11552018 | Microcomputer (Replaces: W10849829) |
|
Immediately | $ 113.15 | ||||
| 1A | W10835574 | Use And Care Guide |
|
- | |||||
| 1B | W10835580 | Cook Guide Label |
|
- | |||||
| 1C | W11279372 | Tech Sheet |
|
- | |||||
| 2A | W11175576 | Control Panel Assembly (includes Lens And Membrane Switch) (stainless) (Replaces: W11173817) |
|
Immediately | $ 299.14 |
