SELECT A DIAGRAM

01 - Cover


03 - Control Panel

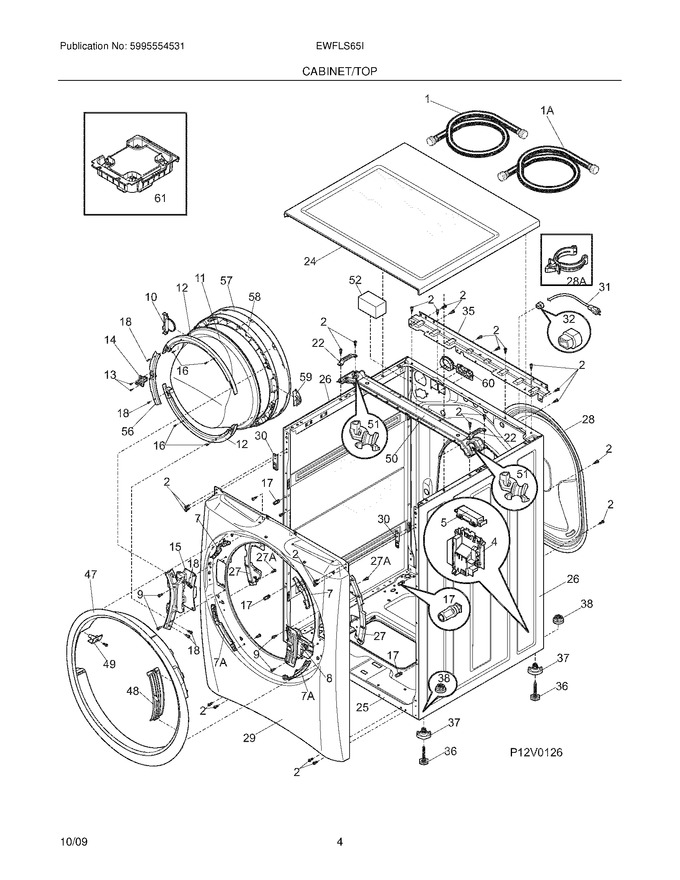

05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304518094		Asmy-hose Inlet (cold),water Inlet   (Replaces: 137015502)				$ 25.52
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
5	134649700		Cover,motor Control ,housing				$ 48.15
7	137046800		Bracket,trim Ring Mtg ,upper				$ 18.79
9	131303300		Screw,pan Head ,10-16ab X 0.500 ,locking		Appelez-nous	-
10	134933900		Assembly,indicator ,complete				$ 84.79
11	5304505107		Glass,door   (Replaces: 134936100)				$ 225.55
12	134696901		Frame,inner Door				$ 87.48
13	131302901		Screw,10-16 X 0.750				$ 4.96
14	134937300		Assembly,strike ,complete				$ 65.21
15	137107500		Hinge,door ,washer				$ 275.10
16	134788000		Screw,no.8 X1.18 ,pan Hd		Appelez-nous	-
17	134638700		Clip,assembly		Appelez-nous	-
18	134790400		Screw,no.10x1.25 ,oval Head				$ 14.18
22	134648500		Bracket-spring,retainer				$ 19.69
24	134638515		Panel,work Top ,blue		Appelez-nous	-
25	134646000		Base		Appelez-nous	-
26	134645915		Panel,side ,blue		Appelez-nous	-
27	134879800		Protector,door Lock ,harness		Appelez-nous	-
28	134646200		Back Panel Service,service				$ 11.63
29	134618715		Panel,front ,blue		Appelez-nous	-
30	134858000		Bracket,front Panel ,lh		Appelez-nous	-
30	134858010		Bracket,front Panel ,rh		Appelez-nous	-
32	5303209428		Bushing,power Cord				$ 17.01
35	134713100		Bracket,top Panel Mtg. ,rear				$ 70.82
36	134639100		Leveling Leg,screw			Immediately	$ 31.19
37	134617600		Bushing,leveling Leg				$ 34.02
38	134639200		Nut,leveling Leg ,bushing				$ 31.90
47	5304505715		Trim,front Panel   (Replaces: 134618800)				$ 302.18
48	134967200		Cover,trim Ring ,washer				$ 61.53
49	134651200		Retainer,trim Ring				$ 161.22
50	134645600		Bracket,tub Suspension		Appelez-nous	-
51	134655800		Protector,tub Suspension ,spring Hook ,(2)				$ 4.45
52	131931202		Dampener,vibration ,foam				$ 17.35
56	134925001		Cover,strike   (Replaces: 134925000)				$ 58.73
57	137067900		Lens,decorated Door   (Replaces: 134932900)				$ 206.24
58	134697200		Panel,outer Door		Appelez-nous	-
59	134931500		Cover,indicator Hole				$ 25.52
60	134372000		Grommet,dispenser ,back Panel				$ 30.47
61	134652000		Damper,mass Vibration			Immediately	$ 362.17
1A	5304518094		Asmy-hose Inlet (hot),water Inlet   (Replaces: 137015503)				$ 25.52
27A	134790600		Screw,no.10-24 X 1.0`` ,pan Hd		Appelez-nous	-
28A	134649400		Fastener,hose Clip ,external				$ 19.53
7A	137046700		Bracket,trim Ring ,mounting				$ 24.10
F31	137011400		Power Cord,electric Svce ,120 16a				$ 62.17
F4	134618200		Control Board,motor				$ 235.45
F8	134629900		Door Lock				$ 168.44
NI	134876501		Clip,hose,drain ,rear-panel   (Replaces: 134876500)				$ 19.85
NI	134994500		Cover,door Lock Plug				$ 11.97
NI	134868900		Harness,door Lock ,front Panel				$ 134.66
NI	134657400		Foam Pad,work Top				$ 71.45
NI	134178901		Screw,8-18ab X 0.455				$ 14.89
NI	134657300		Foam Pad,service Panel ,rear		Appelez-nous	-
NI	134657500		Foam Pad,front Panel		Appelez-nous	-
NI	137044900		Screw,no.10-16x.50 ,flat Head		Appelez-nous	-
NI	131202300		Screw,10-16ab X 0.625			Immediately	$ 13.46
NI	134629400		Screw,mc5x8.5 Torx ,cabinet Mtg				$ 12.76
NI	137380600		Screw,flat Head ,m5 X .8 X 17.5   (Replaces: 134601900)				$ 9.41

    View Diagram in Separate Window       Print Part List
