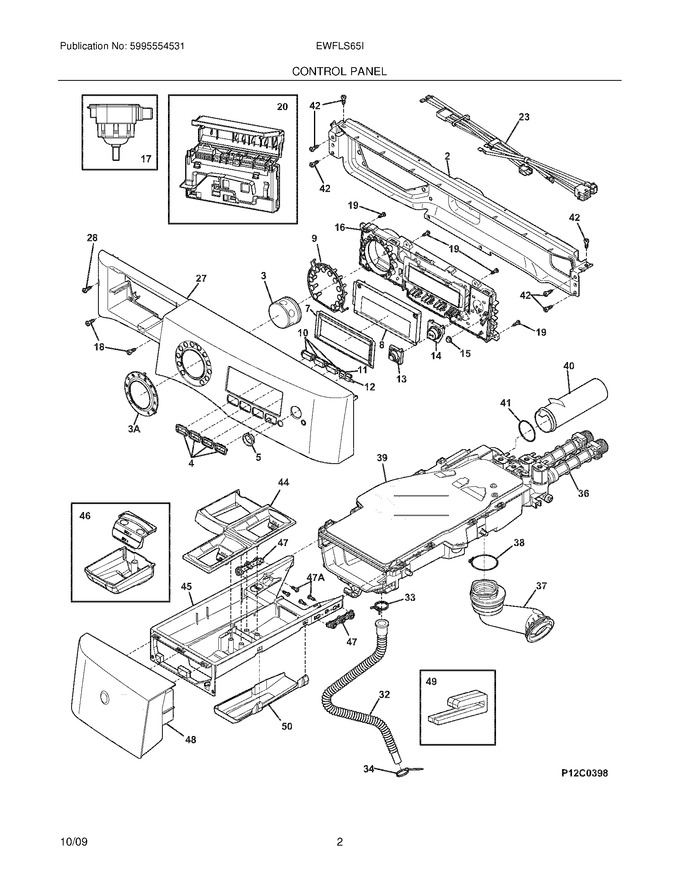

03 - Control Panel


05 - Cabinet/top


07 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	134887400		Bracket,control Panel ,mounting				$ 92.61
3	134766500		Knob,retracting ,complete Asmy				$ 175.72
4	134871900		Pipe,ring ,main Button				$ 84.34
5	134767800		Pipe,start Button				$ 41.81
7	137007800		Trim,ring ,lcd Display				$ 108.44
8	134767600		Lens,lcd Display				$ 53.87
9	134768400		Pipe,knob Light				$ 14.18
10	137007900		Cap,main Button				$ 58.82
11	137043100		Button,up				$ 36.86
12	137010900		Button,down				$ 148.05
13	137021200		Button,set				$ 59.85
14	137009900		Button,start/pause				$ 74.03
15	137008100		Button,off				$ 38.69
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
27	137004930		Panel,control ,red				$ 260.09
28	131302901		Screw,10-16 X 0.750				$ 4.96
32	134625500		Hose,disp-to-bellows				$ 87.17
33	134737300		Clamp   (Replaces: 131306216)				$ 20.13
34	5304464772		Cable Tie,5.60 Inch   (Replaces: 5303321209)				$ 10.63
37	134625700		Hose,disp-to-tub			Immediately	$ 72.72
38	134372400		Clamp,tub Hose				$ 64.49
39	137108710		Housing,dispenser ,valve,cover				$ 200.18
40	134372100		Tube,disp-to-overflo				$ 50.87
41	134372200		O-ring,overflow Tube				$ 13.74
42	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
44	134638310		Drawer Cover,with Graphics				$ 29.66
45	5304505336		Drawer,dispenser   (Replaces: 134638200)			Immediately	$ 59.57
46	137143800		Cup,dispenser ,liquid				$ 27.47
47	134657100		Guide,dispener Drawer				$ 34.18
48	137249530		Drawer Assembly,dispenser ,red		Appelez-nous	-
49	137105200		Guide,drawer Console				$ 17.64
50	134638400		Conveyor,dispenser ,lower				$ 22.64
3A	137021400		Ring,knob ,washer				$ 143.12
47A	134654500		Screw,pan Head ,no.6-20 X .28				$ 12.89
F16	134994810		Control Board,printed Circuit		Appelez-nous	-
F17	134762010		Switch,pressure				$ 42.64
F20	134640610		Control Assembly,main Electronic ,with Steam		Appelez-nous	-
F23	134922900		Harness,wiring ,main				$ 303.59
F36	134637810		Valve Water,dispenser ,no Thermister			Immediately	$ 180.15
NI	137022811		Energy Guide		Appelez-nous	-
NI	134178901		Screw,8-18ab X 0.455				$ 14.89
NI	134371300		Gasket,disp-to-valve			Immediately	$ 51.04
