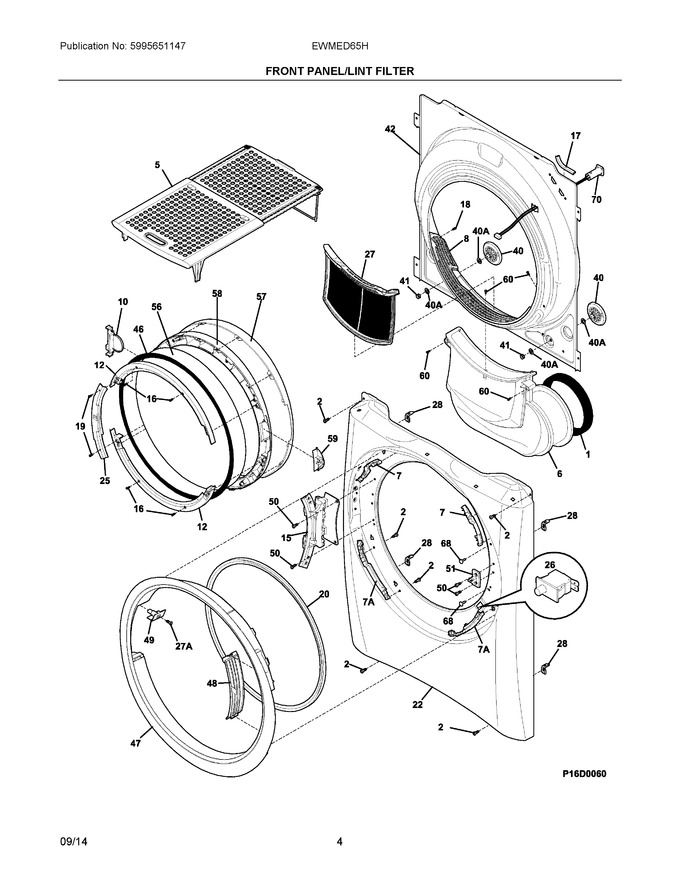

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134784700		Seal, Air Duct				$ 17.72
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
5	134912700		Rack, Drying				$ 266.96
6	134708300		Duct, Air				$ 213.36
7	137046800		Bracket, Trim Ring Mtg, Upper				$ 18.79
8	134700900		Cover, Lint Housing				$ 108.20
10	134933900		Assembly, Indicator, Complete				$ 84.79
12	134696901		Frame, Inner Door   (Replaces: 134696900)				$ 87.48
15	134704600		Hinge, Dryer Door				$ 240.26
16	134788000		Screw, #8 X1.18, Pan Hd		Appelez-nous	-
17	134792900		Protector, Edge, Right Top Front, 85.0+/-1.5				$ 13.46
18	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 14.18
19	134790400		Screw, #10x1.25, Oval Head				$ 14.18
20	137553000		Gasket, Front Panel   (Replaces: 137066300)				$ 131.64
22	134696310		Panel, Front, White				$ 198.50
25	134703700		Latch, Push-push, Door		Appelez-nous	-
26	134813600		Switch, Door   (Replaces: 131843100)			Immediately	$ 43.09
27	134793600		Filter, Lint, Complete			Immediately	$ 92.54
28	137034500		Clip, Mounting, Cabinet Front				$ 43.24
40	5304523155		Roller, Wheel, Complete Asmy   (Replaces: 134715900)			Immediately	$ 77.99
41	134716800		Nut, 3/8-16				$ 2.98
42	134695905		Bulkhead, Panel, Front				$ 186.74
46	134934900		Gasket, Door Glass				$ 24.36
47	5304505715		Trim, Front Panel   (Replaces: 134618800)				$ 302.18
48	134618900		Cover, Trim Ring				$ 80.80
49	134651200		Retainer, Trim Ring				$ 161.22
50	131303300		Screw, Pan Head, 10-16ab X 0.500, Locking		Appelez-nous	-
51	137459300		Striker, Front Panel   (Replaces: 134704300)				$ 49.16
56	134701900		Glass, Door		Appelez-nous	-
57	137067900		Lens, Decorated Door   (Replaces: 134932900)				$ 206.24
58	134697200		Panel, Outer Door		Appelez-nous	-
59	134931500		Cover, Indicator Hole				$ 25.52
60	134430300		Screw, Indt Pan Head, 10-14 X 0.625, Quadrex			Immediately	$ 14.89
68	134742000		Plug, Hinge Hole, White				$ 10.85
70	137526010		Lamp-led, Drum, Complete   (Replaces: 134695000)				$ 150.68
27A	134790600		Screw, #10-24 X 1.0", Pan Hd		Appelez-nous	-
40A	134716700		Washer, Flat				$ 2.12
7A	137046700		Bracket, Trim Ring, Mounting				$ 24.10
NI	134793200		Wiring Harness, Door Switch				$ 60.01
NIA	137380600		Screw, Flat Head, M5 X .8 X 17.5   (Replaces: 134601900)				$ 9.41
NIA	5308027429		Adhesive, High Temp			Immediately	$ 60.25
NIA	134716200		Retainer, Roller Wheel, Assembly				$ 3.12
