01 - Console


02 - Tub , Lit/optional


03 - Door


04 - Heater, Pump And Lower Spray Arm

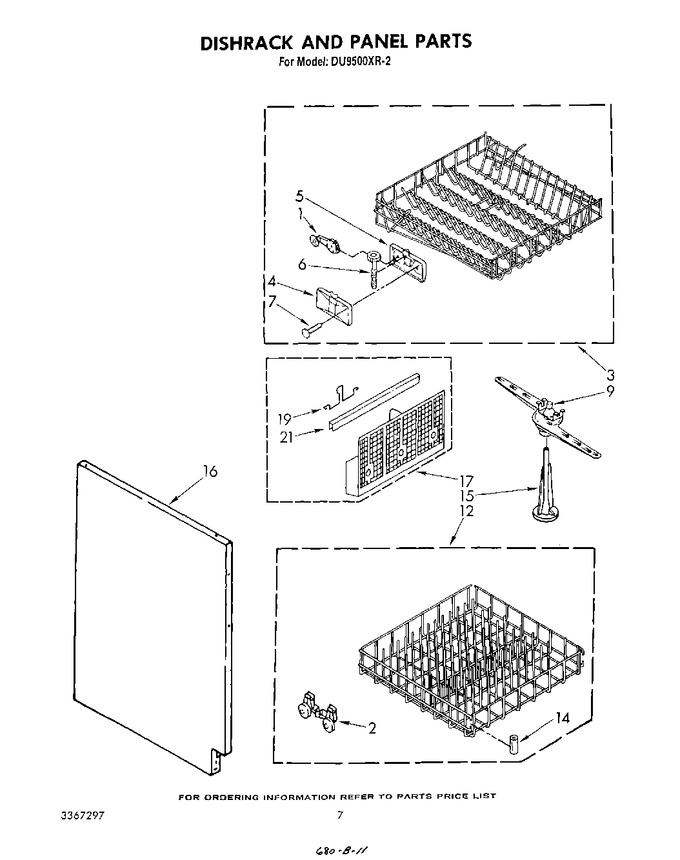

05 - Dishrack And Panel


06 - 3367443 Pump And Motor


07 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	304200		Wheel & Gear Assembly (4)		Appelez-nous	-
2	4317933		Wheel & Carrier Assembly (4)   (Replaces: 303991)				$ 43.80
3	W11169039		Dishrack, Upper   (Replaces: 304197)			Immediately	$ 182.83
4	304202		Cover, Housing (2)		Appelez-nous	-
5	304208		Housing, Gear (2)		Appelez-nous	-
6	304203		Worm, Dishrack (2)		Appelez-nous	-
7	WP9741232		Screw (8)   (Replaces: 301077)			Immediately	$ 4.56
9	304204		Spray Arm				$ 67.61
12	W10311986		Dishrack, Lower   (Replaces: 304182)			Immediately	$ 169.33
14	717970		Bumper (2)		Appelez-nous	-
15	304170		Tower				$ 72.38
17	304166		Silverware Basket		Appelez-nous	-
19	300086		Handle, Basket		Appelez-nous	-
21	717528		Trim, Basket		Appelez-nous	-
