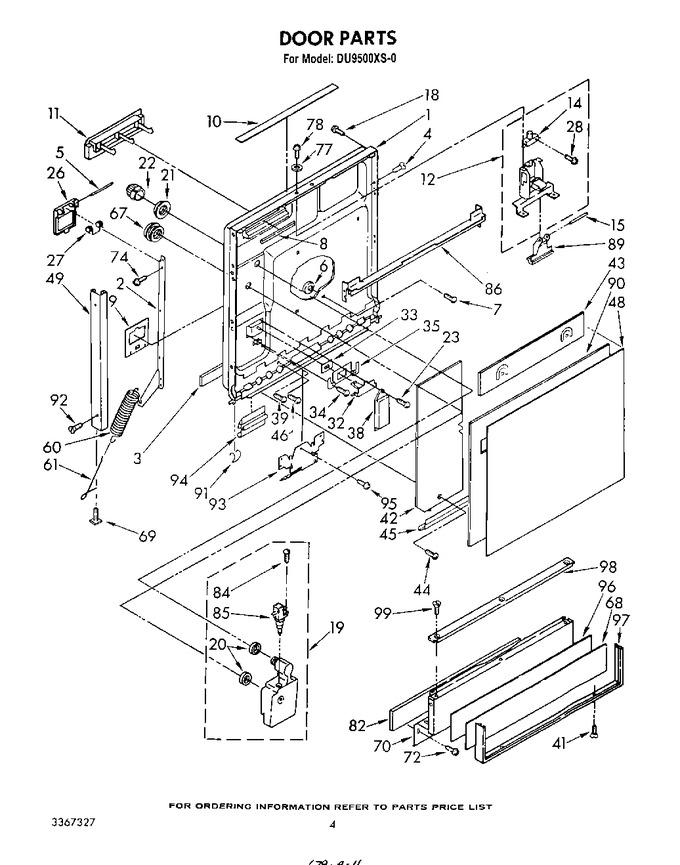

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3367388		Door, Inner		Appelez-nous	-
2	3367202		Support, Door (l.h.)		Appelez-nous	-
2	3367201		Support, Door (r.h.)		Appelez-nous	-
3	717921		Gasket, Door		Appelez-nous	-
4	WP489069		Screw, 8-18 X 1/2 Hex Wash Hd Tapping (2)   (Replaces: 304392)			Immediately	$ 7.07
5	4387043		Pin, Lid Hinge   (Replaces: 300115)				$ 42.50
6	300239		Button, Retainer (5)		Appelez-nous	-
7	300250		Screw, 8-18 X 3/8 Hi-lo (5)		Appelez-nous	-
8	719860		Baffle		Appelez-nous	-
9	303978		Baffle		Appelez-nous	-
10	303498		Label, Users Guide		Appelez-nous	-
11	300246		Screen, Vent		Appelez-nous	-
12	304397		Latch Assembly		Appelez-nous	-
14	302217		Switch, Interlock		Appelez-nous	-
15	300234		Pin, Pivot		Appelez-nous	-
18	304233		Screw, 8-18 X 1-7/8 Truss Head Tapping (2)		Appelez-nous	-
19	304442		Dispenser, Wetting Agent		Appelez-nous	-
20	713080		Washer (2)		Appelez-nous	-
21	718575		Nut, 1-14 Buttress Thread (1)		Appelez-nous	-
22	718577		Cap		Appelez-nous	-
23	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point   (Replaces: 304231)			Immediately	$ 6.98
26	4387043		Lid, Detergent Dispenser Assembly   (Replaces: 300155)				$ 42.50
27	WP8066018		Spring, Lid   (Replaces: 300106)			Immediately	$ 7.15
28	301582		Screw, 6-32 X 1 Hex-head Tapping (1)		Appelez-nous	-
32	300119		Lever, Catch		Appelez-nous	-
33	300105		Seal, Lever				$ 5.70
34	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (2)   (Replaces: 304231)			Immediately	$ 6.98
35	300104		Retainer, Seal		Appelez-nous	-
38	300109		Actuator		Appelez-nous	-
39	WP304231		Screw, 8 X 1/2 Hi-lo Blunt Point (1)   (Replaces: 304231)			Immediately	$ 6.98
41	WP302868		Screw, 8-18 X 1/2 Phlps Hex Wash Hd Tapping (2)   (Replaces: 302868)			Immediately	$ 6.98
42	303906		Barrier, Door		Appelez-nous	-
43	303908		Barrier, Console		Appelez-nous	-
44	W11693756		Screw, 8-18 X 5/8 (2)   (Replaces: 688983)			Immediately	$ 12.65
45	304047		Panel, Edging (door)		Appelez-nous	-
46	WP90767		Screw, 8a X 3/8 Ground (1)   (Replaces: 90767)			Immediately	$ 7.04
48	N/A		Panel, Front		Appelez-nous	-
49	3367207		Trim, Door (l.h.)		Appelez-nous	-
49	3367206		Trim, Door R.h.		Appelez-nous	-
60	716425		Spring, Door		Appelez-nous	-
61	716401		Retainer, Spring				$ 35.28
67	718576		Cap, Drip		Appelez-nous	-
68	N/A		Panel, Access		Appelez-nous	-
69	3367172		Clip, Guard		Appelez-nous	-
70	303752		Plate, Toe		Appelez-nous	-
72	WP302868		Screw, 8-18 X 1/2 Hex-head Tapping (4)   (Replaces: 302868)			Immediately	$ 6.98
74	WP488627		Screw, 8-18 X 1/2 (4)   (Replaces: 300128)				$ 6.81
77	300237		Washer		Appelez-nous	-
78	WP90767		Screw, 8a X 3/8 Hex Head Tapping (2)   (Replaces: 90767)			Immediately	$ 7.04
82	304660		Shield, Sound		Appelez-nous	-
84	304444		Screw, 4-20 X 3/8 Torx Pan Hd (2)		Appelez-nous	-
85	304443		Actuator		Appelez-nous	-
86	304391		Rail, Support		Appelez-nous	-
89	304407		Lever, Release		Appelez-nous	-
90	301957		Spacer, Corrugated		Appelez-nous	-
91	301857		Clip, Wire (2)		Appelez-nous	-
92	3367288		Screw, 8 X 1/2 (4)		Appelez-nous	-
93	303362		Shield, Harness		Appelez-nous	-
94	303121		Retainer, Clip		Appelez-nous	-
95	303090		Screw, 8a X 3/8 Hex\ Head\ T\a\pping		Appelez-nous	-
96	303755		Spacer, Corrugated		Appelez-nous	-
97	303753		Trim, Access Panel		Appelez-nous	-
98	303754		Trim, Access Panel Top		Appelez-nous	-
99	302251		Screw, 8 X 1/2 Phlps. Oval Hd Tapping (3)		Appelez-nous	-
