SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter


07 - Controls/top Panel

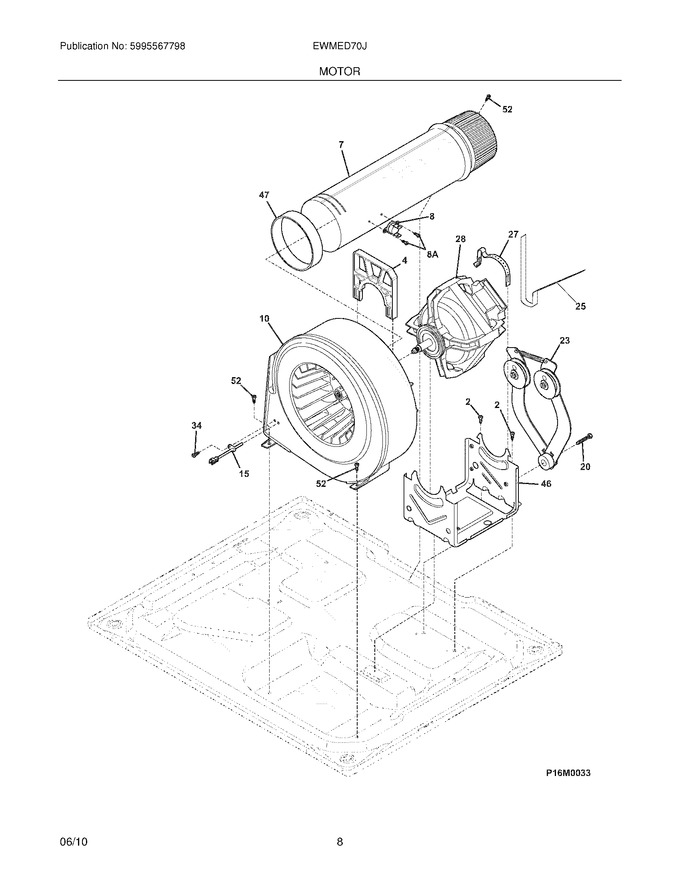

09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	134707900		Lock,blower Housing				$ 22.05
7	5304509710		Tube,exhaust ,rear   (Replaces: 134693900)				$ 26.94
8	134711401		Limiter,thermal ,exhaust ,flush Mount   (Replaces: 134711400)			Immediately	$ 35.48
10	134690800		Blower,housing ,complete			Immediately	$ 213.98
15	134711300		Thermister,exhaust				$ 53.87
20	131017900		Screw,hex Head ,1/4-20t X 1.25 ,spacer Mtg.,thread Cutting				$ 14.46
23	134784400		Idler Arm Assy,reversing ,with Pulley				$ 116.40
27	134242400		Clamp,motor Mtg.			Immediately	$ 35.76
34	131243700		Screw, Pan Head, 8-18ab X 0.375				$ 3.36
46	134707400		Bracket,motor Cradle				$ 59.01
47	131633300		Seal-exhaust Tube				$ 19.06
52	137034600		Screw,no.10-16x0.375		Appelez-nous	-
8A	134935200		Screw,no.8-32 X .25 ,w/no.6 Quadrexpan				$ 13.46
F25	134719300		Belt,``h`` ,poly V ,5 Rib			Immediately	$ 68.68
F28	137116000		Motor,reversing ,with Pulley				$ 297.11
NI	137030800		Nut,wheel Lock ,1/4-20 ,blower				$ 7.09
NI	131089700		Spring-idler				$ 15.80

    View Diagram in Separate Window       Print Part List
