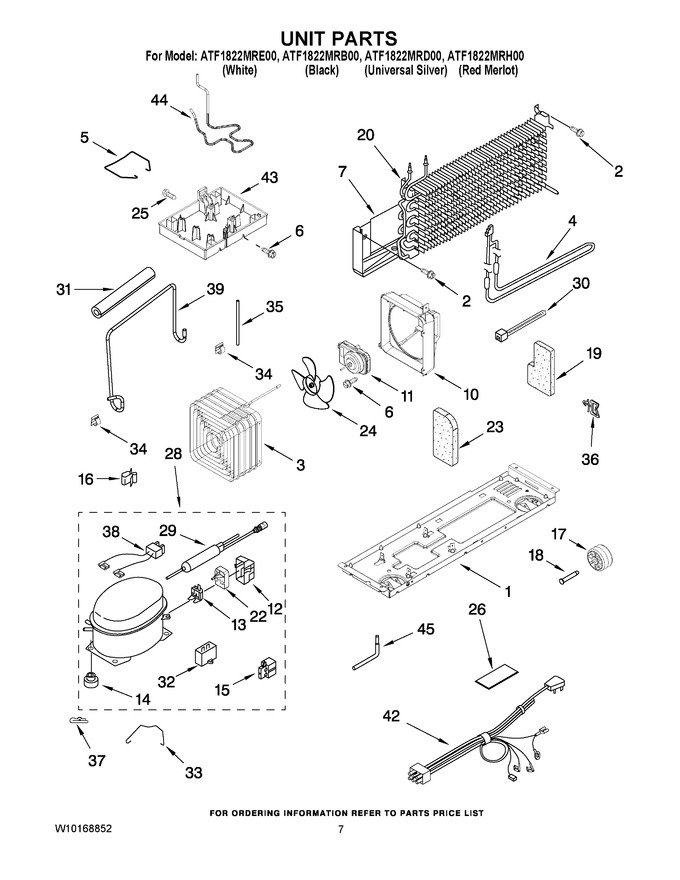

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10127456) |
|
$ 125.81 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 9.85 | ||||
| 3 | W10140200 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 84.33 | ||||
| 5 | 2264835 | Clip, Condenser |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 9.95 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 10 | WP2263929 | Air Baffle (Replaces: 2263929) |
|
$ 81.11 | |||||
| 11 | W11578915 | Motor, Condenser (Replaces: 2188875) |
|
Immediately | $ 64.28 | ||||
| 12 | WP2162358 | Cover ((service Only)) (Replaces: 4387731) |
|
$ 81.68 | |||||
| 13 | WP2214067 | Overload ((service Only)) (Replaces: 4390624) |
|
$ 118.49 | |||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.26 | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.16 | |||||
| 15 | 2183454 | Start Relay (service Only) |
|
- | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 6.47 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 285.62 | ||||
| 22 | WPW10197428 | Start- Device Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10128791) |
|
Immediately | $ 80.29 | ||||
| 23 | 2262192 | Wedge, Evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 94.28 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 5.82 | |||||
| 26 | 2266360 | Shield, Electrical |
|
- | |||||
| 28 | W10233960 | Compressor (includes Items 12, 13, 14, 15, 29, 32 & 38) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10141544) |
|
Immediately | $ 462.29 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.11 | |||||
| 31 | 2264838 | Sleeve |
|
$ 79.10 | |||||
| 32 | WPW10662129 | Capacitator (production) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 32 | WPW10662129 | Capacitator (service) (Replaces: 1118576) |
|
Immediately | $ 52.97 | ||||
| 33 | W10141545 | Bale Strap |
|
- | |||||
| 34 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 10.37 | ||||
| 35 | 2264278 | Tube, Drain |
|
$ 68.37 | |||||
| 36 | 2266467 | Clip, Harness |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | WP2172890 | Wire Assembly (service Only) (Replaces: 4387765) |
|
$ 7.29 | |||||
| 39 | W10140199 | Extension, Tube-heat |
|
- | |||||
| 42 | 2263753 | Wire Assy. Unit |
|
$ 64.42 | |||||
| 43 | WP2263928 | Evaporating Tray (Replaces: 2263928) |
|
$ 127.73 | |||||
| 44 | W10140197 | Tube, Discharge (incl. Pre Cooler) |
|
- | |||||
| 45 | W10140201 | Tube, Process |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 | ||||
| NI | SF5538 | Valve, Access(3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access (1/2``) |
|
- | |||||
| NI | 978029 | Valve, Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| NI | N/P | Refrigerant Charge (3.75 Ozs. (r134a)) |
|
- |
