SELECT A DIAGRAM

01 - Cover


03 - Cabinet/drum


05 - Front Panel/lint Filter

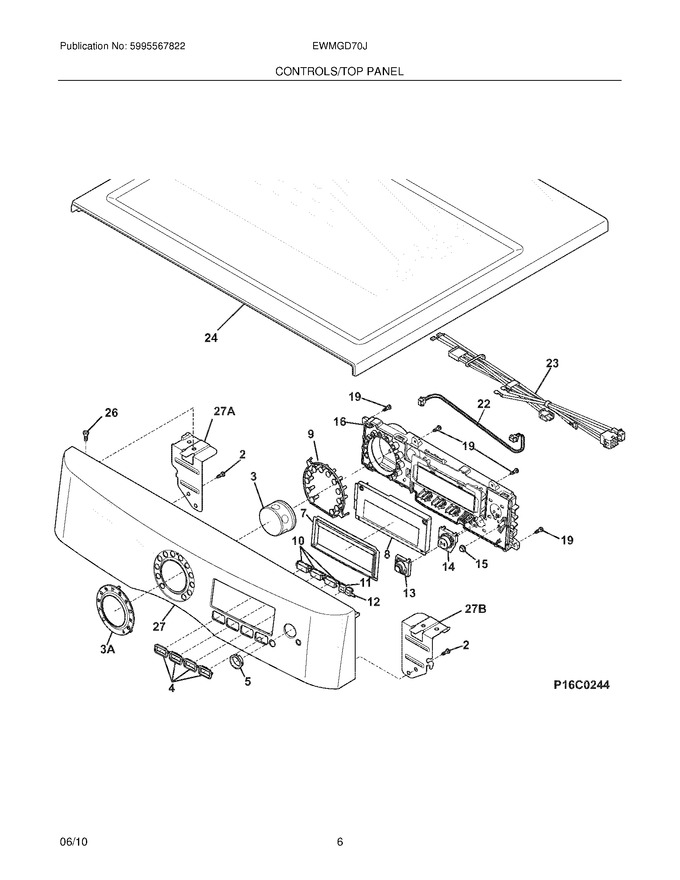

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	134766500		Knob,retracting ,complete Asmy				$ 175.72
4	134871900		Pipe,ring ,main Button				$ 84.34
5	134767800		Pipe,start Button				$ 41.81
7	137007800		Trim,ring ,lcd Display				$ 108.44
8	134767600		Lens,lcd Display				$ 53.87
9	134768400		Pipe,knob Light				$ 14.18
10	137007900		Cap,main Button				$ 58.82
11	137043100		Button,up				$ 36.86
12	137010900		Button,down				$ 148.05
13	137021200		Button,set				$ 59.85
14	137009900		Button,start/pause				$ 74.03
15	137008100		Button,off				$ 38.69
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
24	134638510		Panel,work Top ,white				$ 217.22
26	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
27	137317410		Panel,control Console ,white		Appelez-nous	-
27A	134710900		Bracket,control Panel ,left Hand ,mounting				$ 21.27
27B	134711000		Bracket,control Panel ,right Hand ,mounting				$ 23.63
3A	137063600		Dryer Knob Ring,function ,white				$ 219.72
F16	809160410		Control Board,user Interface ,with Housing   (Replaces: 134994610)			Immediately	$ 448.67
F22	134790700		Harness,user Interface				$ 88.36
F23	137016100		Harness,wire-main ,ewgmd65		Appelez-nous	-
NI	134926600		Damper,sound				$ 14.18

    View Diagram in Separate Window       Print Part List
