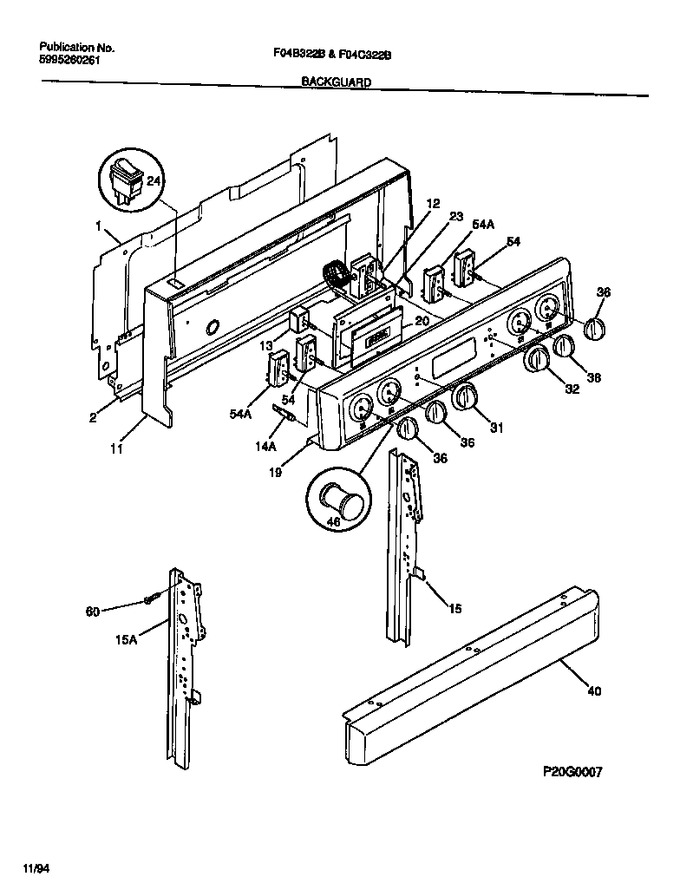

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316075201		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061802		Trim-wrapper		Appelez-nous	-
12	316032400		Thermostat, Oven, Non Sc		Appelez-nous	-
13	316032500		Switch, Selector		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024436		Panel-control, Metal		Appelez-nous	-
20	316045103		Clock/timer, Electronic		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker, Black, (2)   (Replaces: 316005602)			Immediately	$ 11.38
31	316054904		Knob-selector, (3) Pos		Appelez-nous	-
32	316054900		Knob-thermostat		Appelez-nous	-
36	316025100		Knob-control, Infinite Sw		Appelez-nous	-
40	316025800		Panel-manifold		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*01360	316021109		Screw, Hex, 8-18 X 3/8, Black\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*01361	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
14A	316022503		Light/lamp, Indiactor, 250 V, ( 3)			Immediately	$ 70.16
15A	316023111		Support-backguard, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68

    View Diagram in Separate Window       Print Part List
