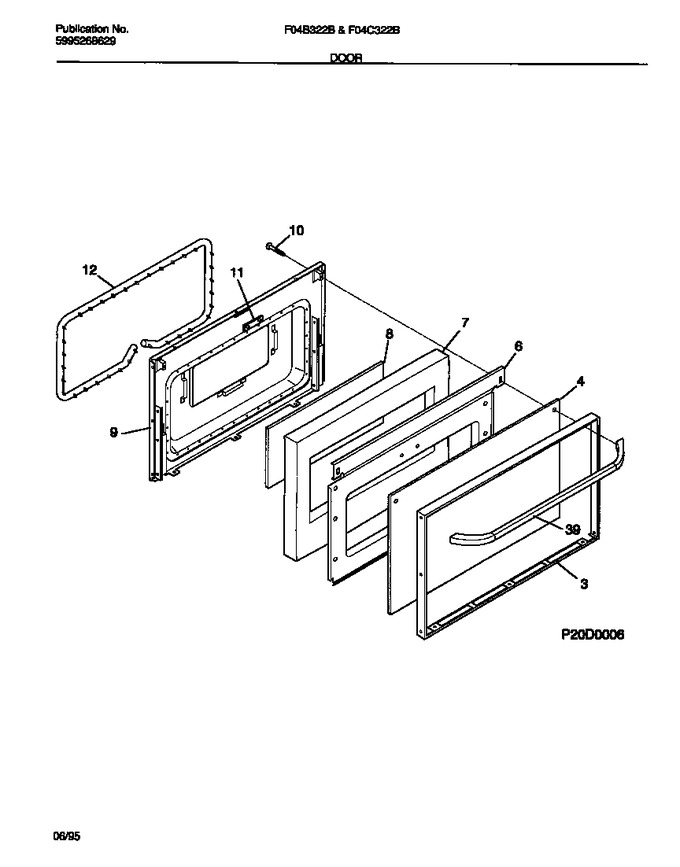

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
6	5303210608		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation,oven Door   (Replaces: 316076401)			Immediately	$ 192.78
8	316050303		Glass-oven Door, Inner		Appelez-nous	-
9	316066603		Liner-oven Door		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
11	5303015373		Cover-door Liner		Appelez-nous	-
12	5303202011		Seal-oven Door, Non Self-clean				$ 166.84
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
*97450	316071600		Plate Warning/caution		Appelez-nous	-
*97451	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*97452	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*97453	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*97454	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
