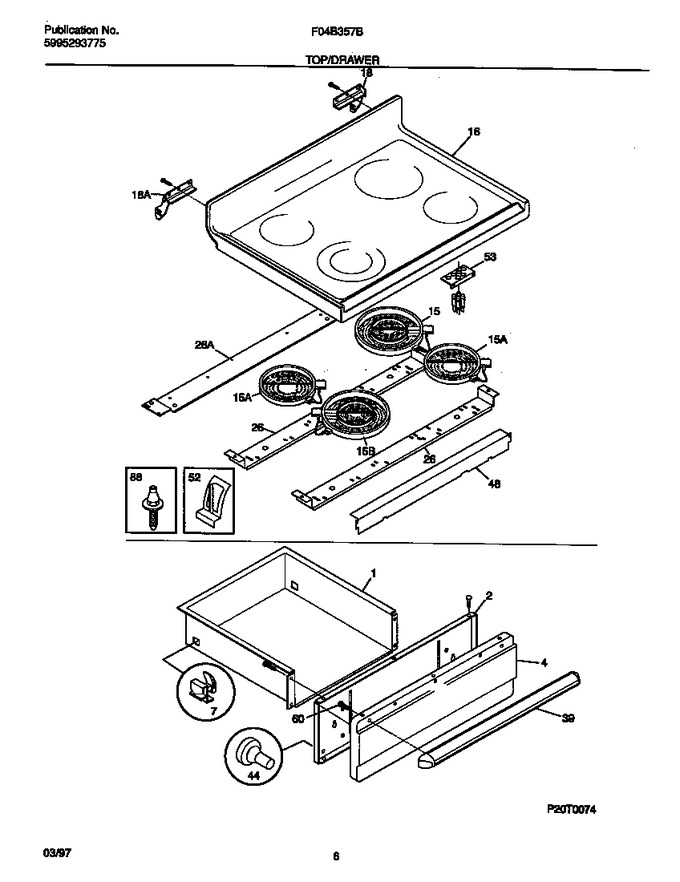

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	318198834		Element-surface, 2100w, Large/8 Inch, Limit Sw Incl   (Replaces: 316010204)				$ 205.36
15	318198817		Element-surface, Radiant, Small/6 Inch, 1200w, (2), Limi   (Replaces: 316010203)			Immediately	$ 192.78
16	316098126		Main Top, Almond		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
26	316099101		Channel-support, Element, (2)		Appelez-nous	-
26	316099201		Bracket-support, Chassis		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
44	3131903		Bumper				$ 55.36
48	316100200		Shield-wire, Main Top		Appelez-nous	-
52	316099400		Clip-spring, Element Mtg, (8)				$ 29.56
53	316099301		Bracket-indicator Light, Hot Surface		Appelez-nous	-
60	316089500		Screw, Drawer Handle 10-16 X .486, Safety Valve, (2)				$ 13.46
88	316099500		Pin,guide ,(2)				$ 6.53
*29326	316045000		Clip-wire, Harness, Main Top		Appelez-nous	-
*29327	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*29328	316519700		Screw, Cup Pt, 8-18 X 3/8 Hinge, Ind Lght Brkt, Manifol   (Replaces: 316021108)				$ 10.02
*29329	5303280311		Screw, Waf Hd Sdr, 10-32 X 5/16, (2)				$ 6.62
*29330	5303288574		Screw, Truss Head, 8-10 X 0.375		Appelez-nous	-
*29331	5309951550		Cleaner-cooktop		Appelez-nous	-
*29332	316001738		Harness-top Elements, Ind. Light Incl		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
