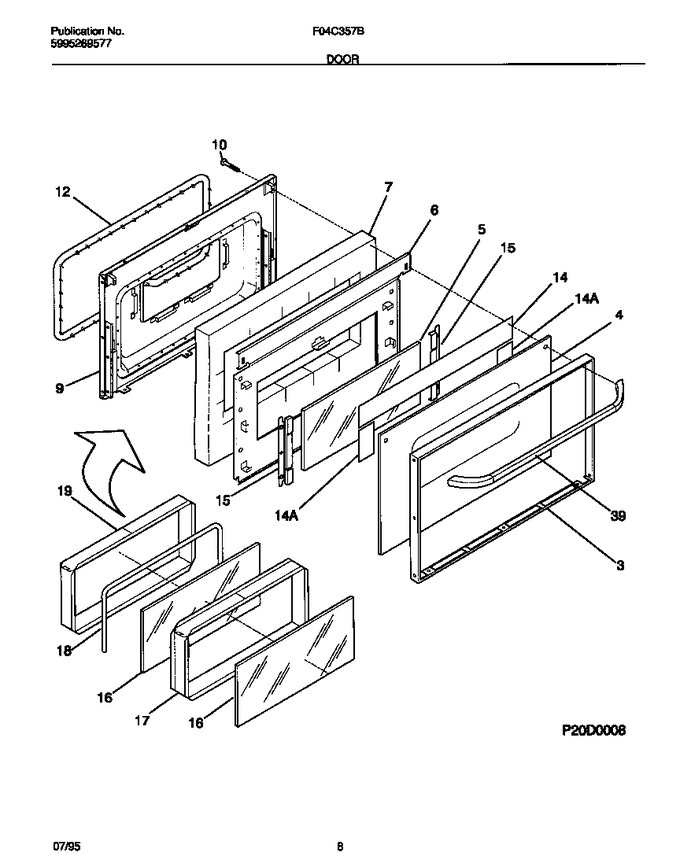

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	3051152		Glass-oven Door, Black, Outer		Appelez-nous	-
5	5303209513		Glass-oven Door, Inner		Appelez-nous	-
6	5303211084		Shield-insulation		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
9	316066603		Liner-oven Door		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
12	5303131601		Seal-oven Door				$ 374.63
14	5303208656		Reflector, Aluminum Foil		Appelez-nous	-
15	5303209510		Bracket-glass Mtg		Appelez-nous	-
16	5303209512		Glass-oven Door, Heat Barrier, (2)				$ 150.41
17	5303209517		Spacer-glass		Appelez-nous	-
18	5303211085		Seal-rope, 0.25 Dia				$ 44.00
19	316067600		Collar-glass Mtg		Appelez-nous	-
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
*36534	316065300		Plate Warning/caution		Appelez-nous	-
*36535	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*36536	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*36537	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*36538	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
14A	5303208655		Reflector, Aluminum Foil, (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
