SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Body

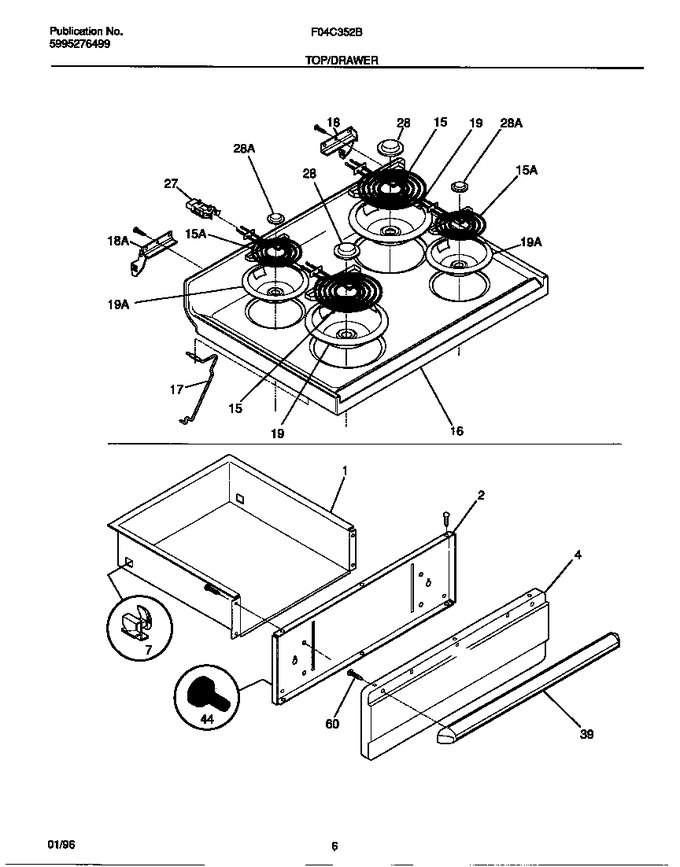

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	316056205		Panel-drawer-white		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
15	316048500		Element-surface, Small/6 Inch		Appelez-nous	-
15	316048600		Element-surface, Large/8 Inch		Appelez-nous	-
16	316202388		Main Top, White   (Replaces: 316020907)				$ 407.24
17	316057601		Rod-maintop Support				$ 64.49
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
19	L304430992		Pan-surface Element, Small/6 Inch   (Replaces: 5303935057)				$ 9.59
19	316048413		Pan-surface Element, Large/8 Inch   (Replaces: 5303935054)			Immediately	$ 9.85
27	5303935058		Terminal Block Kit,surface Element   (Replaces: 5303912666)			Immediately	$ 13.81
28	5303296595		Medallion, 3/4`` Dia, Surface Element		Appelez-nous	-
28	5303017715		Medallion,1 1/2``dia ,black ,surface Element				$ 64.46
39	316026103		Handle-drawer, White		Appelez-nous	-
44	3131903		Bumper				$ 55.36
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
*70487	3203618		Rivet-pop, Warning-plate		Appelez-nous	-
*70488	316001725		Harness-wiring, Surface Element		Appelez-nous	-
*70489	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*70490	5303288567		Screw, 8-18 X 3/8, (4)		Appelez-nous	-
*70491	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
