SELECT A DIAGRAM

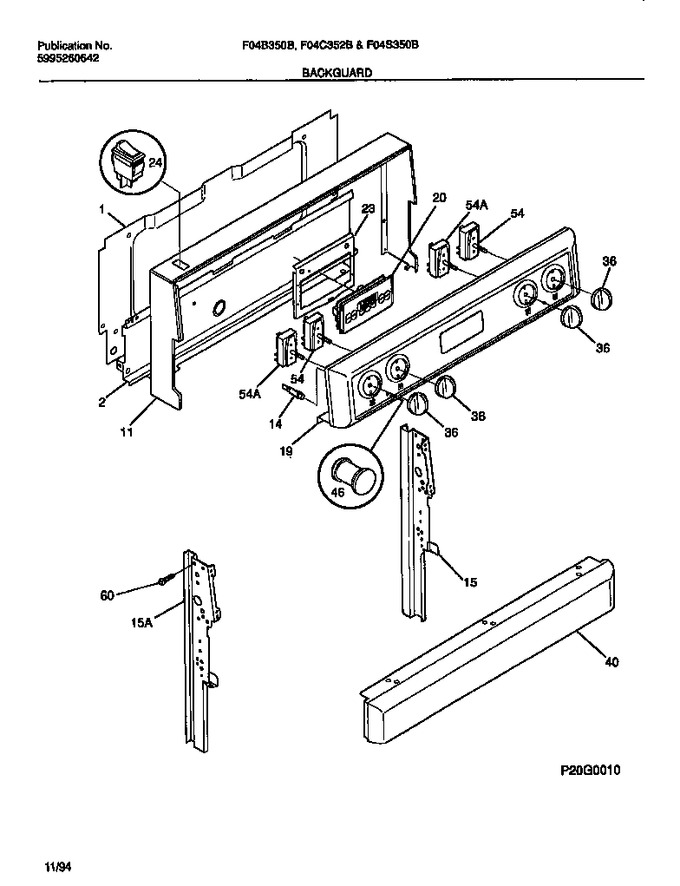

03 - Backguard


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316075201		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
11	316061804		Trim-wrapper		Appelez-nous	-
14	316022503		Light/lamp, Indicator, 250 V, (3)			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024440		Panel-control, Metal		Appelez-nous	-
20	316027202		Clock/timer, Eoc, Membrane		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	316005604		Switch - Oven Light, Rocker, Almond		Appelez-nous	-
36	316025102		Knob-control, Almond		Appelez-nous	-
40	316025802		Panel-manifold, Almond		Appelez-nous	-
46	316040201		Lens-light/lamp, Indicator, Red		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*12769	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*12770	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
15A	316023111		Support-backguard, Lh		Appelez-nous	-
54A	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68

    View Diagram in Separate Window       Print Part List
