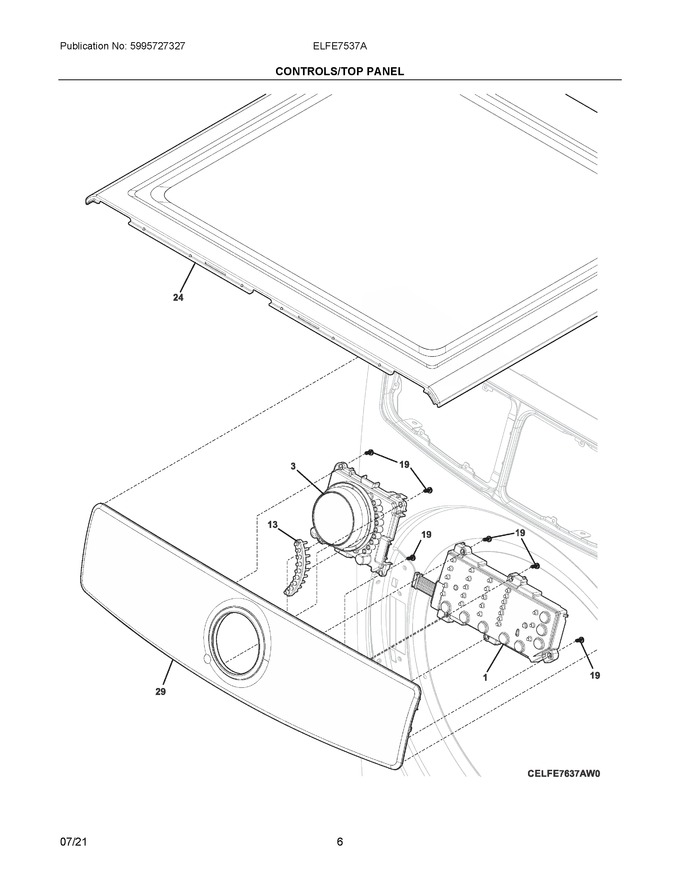

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304521513		Board Assy, Ui Programmed, Satellite, W/housing-screw			Immediately	$ 246.86
3	5304529819		Knob Assembly, Complete, W/boards				$ 199.53
13	5304529751		Diffuser, Light				$ 15.18
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304505082		Top Panel, Titanium				$ 264.89
29	5304529939		Console Assembly				$ 176.83
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	5304521235		Harness, Wiring, Main				$ 223.58
NI	137150200		Terminal Block Kit, Main				$ 31.90
