01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram

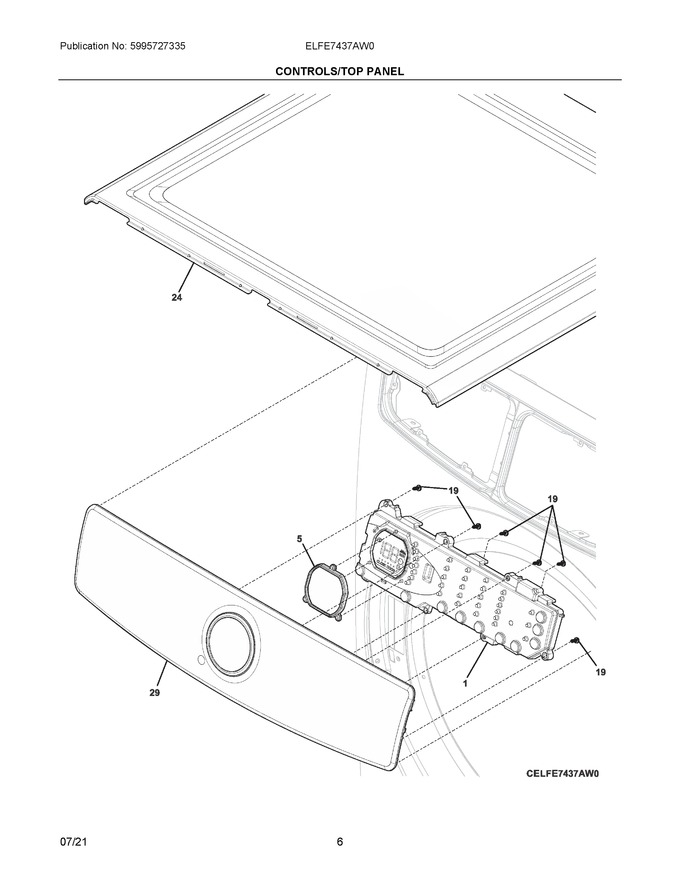

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529943		Board Assembly, Ui Linear, W/housing-screw				$ 289.17
5	5304505345		Seal, Display Area				$ 15.47
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304505081		Top Panel, White				$ 227.48
29	5304529942		Console Assembly			Immediately	$ 184.92
NI	5304521443		Harness, Wiring, Main			Immediately	$ 200.64
NI	137150200		Terminal Block Kit, Main				$ 31.90
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
