01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter

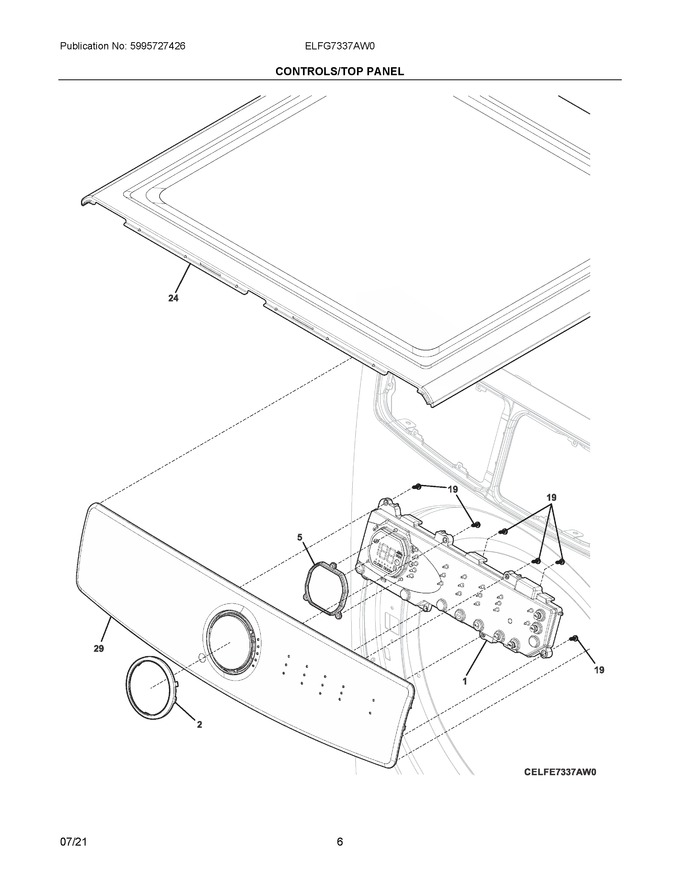

04 - Controls/top Panel


05 - Motor


06 - Burner


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529953		Board Assembly, Ui Linear, W/housing-screw		Appelez-nous	-
2	5304505044		Trim, Ring, Chrome				$ 38.26
5	5304505045		Seal, Display Area		Appelez-nous	-
19	5304505441		Screw, Pph B, 6-20x.375				$ 6.51
24	5304505081		Top Panel, White				$ 227.48
29	5304529699		Console Assembly				$ 112.29
NI	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 14.18
NI	5304529955		Harness				$ 158.33
