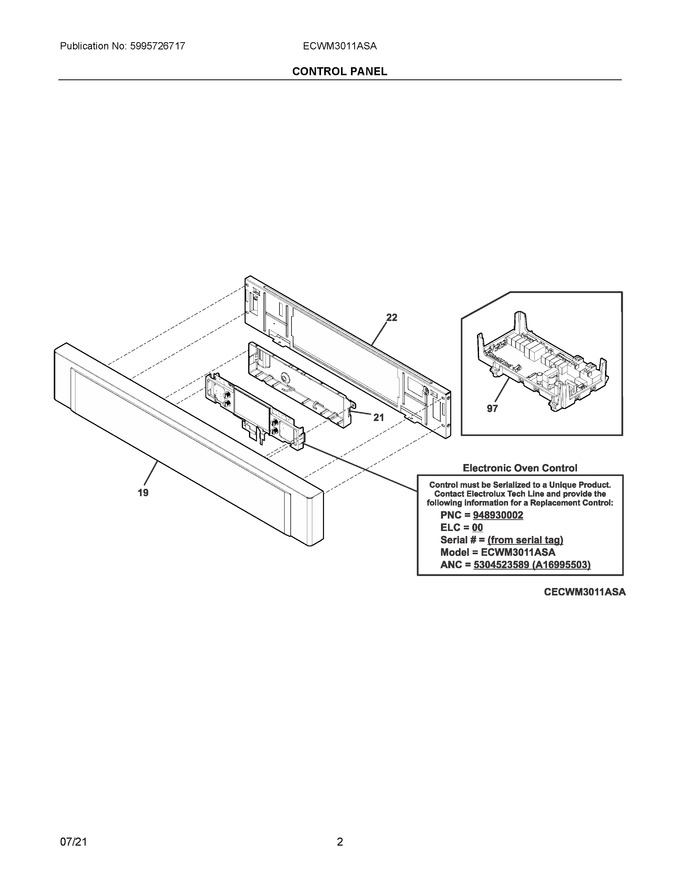

02 - Control Panel
03 - Microwave Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304525152 | Control Panel, Assembly, Glass/steel, Black/stainless |
|
Immediately | $ 357.71 | ||||
| 21 | 5304523582 | Housing, Controller |
|
Immediately | $ 34.13 | ||||
| 22 | A16358901 | Bracket, Support, Control Panel |
|
$ 80.59 | |||||
| 97 | 316472809 | Circuit Board, Assembly, Ovc1, W/housing |
|
$ 183.05 | |||||
| NI | 5304528839 | Harness, Wiring, Ground |
|
- | |||||
| NI | 5304525141 | Harness, Wiring, Communication, Lumos/ovc1 |
|
- | |||||
| NI | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
