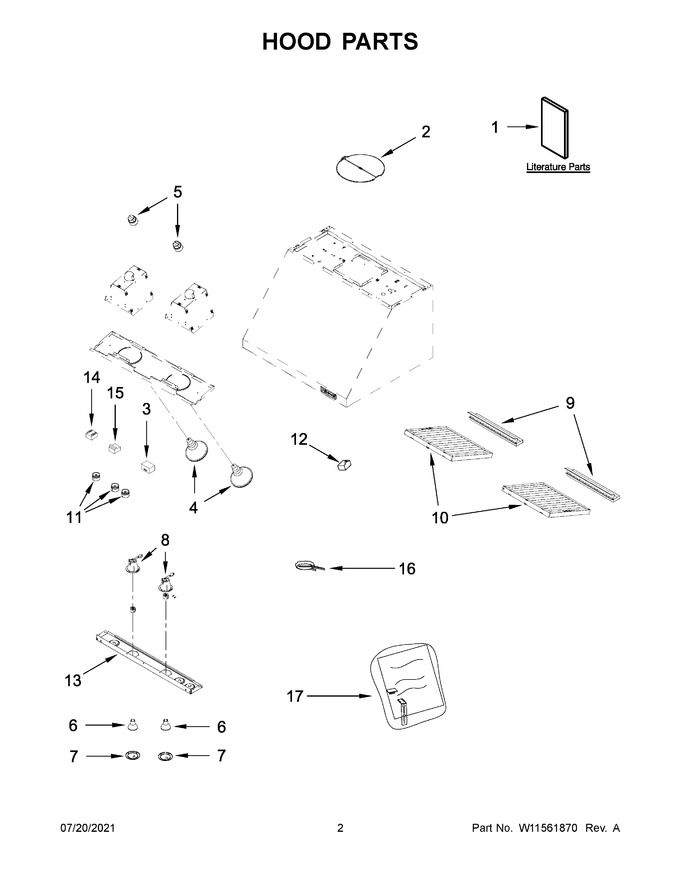

02 - Hood Parts
03 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374531 | Owners Manual |
|
- | |||||
| 2 | W11551389 | Damper |
|
Immediately | $ 118.92 | ||||
| 3 | W10293967 | Switch, Fan |
|
$ 117.15 | |||||
| 4 | WPW10294005 | Lamp, Ir (Replaces: W10294005) |
|
Immediately | $ 254.32 | ||||
| 5 | W10294008 | Socket, Ir Lamp |
|
$ 72.31 | |||||
| 6 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 75.11 | ||||
| 7 | W10351924 | Bezel, Lamp |
|
$ 169.36 | |||||
| 8 | W10295808 | Socket, Light |
|
Immediately | $ 95.08 | ||||
| 9 | W10294003 | Grease Tray (30" Model Only) |
|
$ 285.38 | |||||
| 10 | W10351890 | Grease Filter (30" Model Only) |
|
$ 101.07 | |||||
| 11 | WPW10294009 | Knob (Replaces: W10294009) |
|
$ 61.90 | |||||
| 12 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 87.17 | ||||
| 13 | W10295804 | Control Panel (30" Model Only) |
|
- | |||||
| 14 | W10293976 | Switch, Ir Lamp |
|
Immediately | $ 118.56 | ||||
| 15 | W10293968 | Switch, Light |
|
$ 109.85 | |||||
| 16 | W10427011 | Filter, Noise |
|
- | |||||
| 17 | W10293977 | Hardware, Installation |
|
$ 49.91 | |||||
| 10A | W10351892 | Grease Filter (36" Model Only) |
|
$ 231.12 | |||||
| 10B | WPW10351929 | Grease Filter (48" Model Only) (Replaces: W10351929) |
|
$ 179.92 | |||||
| 13A | W10295807 | Control Panel (36" Model Only) |
|
- | |||||
| 13B | W10293971 | Control Panel (48" Model Only) |
|
Immediately | $ 195.85 | ||||
| 9A | W10294011 | Grease Tray (36" Model Only) |
|
$ 274.13 | |||||
| 9B | W10294022 | Grease Tray (48" Model Only) |
|
$ 303.33 |
