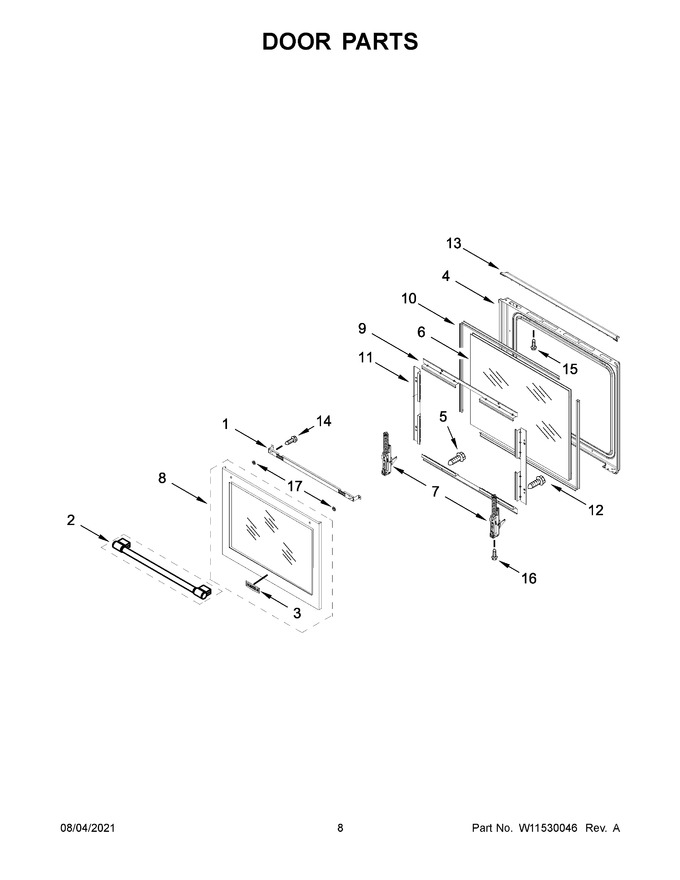

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541911		Bracket, Glass Upper Handle			Immediately	$ 34.22
2	W10912640		Assembly, Handle (stainless)   (Replaces: W10834521)				$ 194.87
3	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 36.31
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 282.60
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	W11339500		Glass, Inner   (Replaces: W11223202)				$ 146.72
7	W11162113		Hinge, Door (active)   (Replaces: W10885519)			Immediately	$ 111.53
8	W11087941		Assembly, Door Skin (stainless)   (Replaces: W10883552)				$ 852.27
9	W10813140		Rail, Horizontal Support			Immediately	$ 151.89
10	W11673273		Glass Spacer   (Replaces: W11379948)			Immediately	$ 26.60
11	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 65.30
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.04
13	W11251351		Liner, Door Scoop (black)   (Replaces: W10613791)			Immediately	$ 119.72
14	WP8533988		Screw   (Replaces: W11091878)			Immediately	$ 7.16
15	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 12.65
16	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.26
17	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 12.69
