01 - Cover Sheet

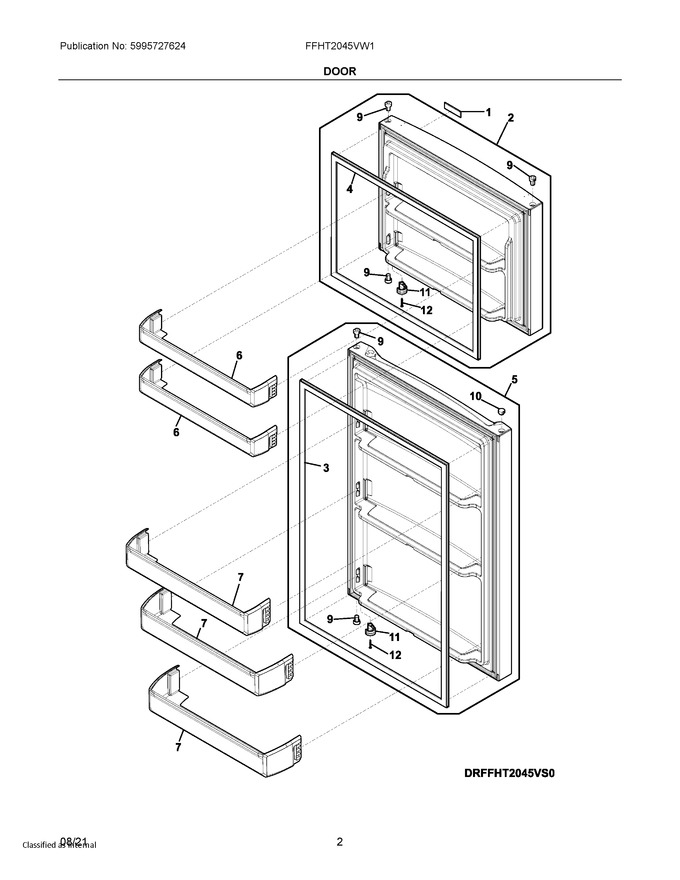

02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511144 | Badge, Frigidaire, White |
|
Immediately | $ 4.55 | ||||
| 2 | 5304532517 | Door Assembly, Freezer, White (Replaces: 5304530025) |
|
Immediately | $ 260.45 | ||||
| 3 | 5304528903 | Gasket, Door, Gray, Fresh Food |
|
Immediately | $ 205.12 | ||||
| 4 | 5304528904 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 180.01 | ||||
| 5 | 5304532518 | Door Assembly (Replaces: 5304530006) |
|
Immediately | $ 282.38 | ||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 50.61 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 81.06 | ||||
| 9 | 5304519757 | Bearing, Hinge, White |
|
Immediately | $ 7.30 | ||||
| 10 | 5304519747 | Cover, Hinge Bearing, White |
|
$ 2.98 | |||||
| 11 | 5304519789 | Hook, Door Closer, White |
|
Immediately | $ 4.55 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 |
