SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

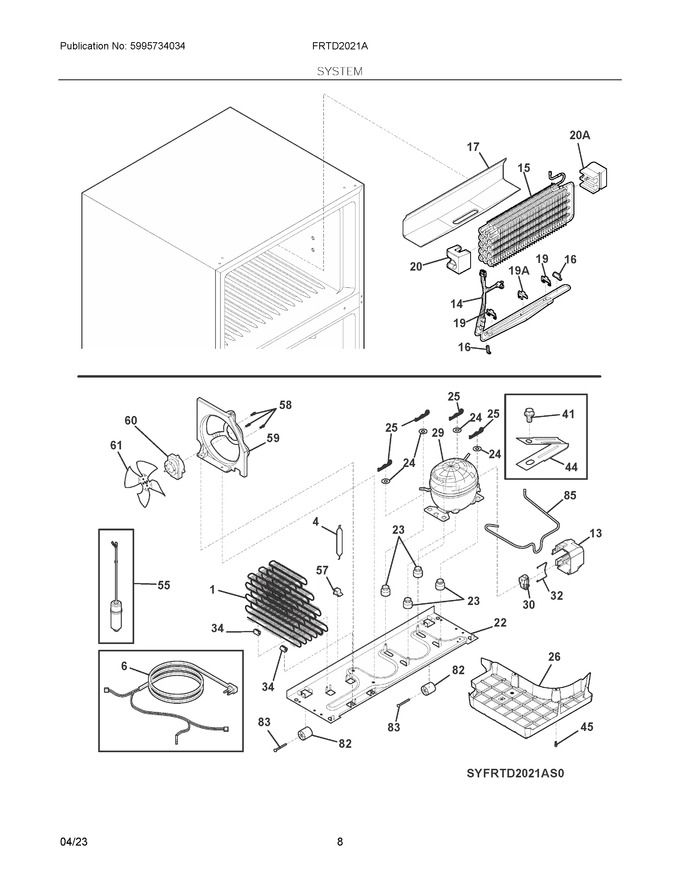

04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241785409		Condenser, Dynamic		Appelez-nous	-
4	5303305677		Dryer-filter   (Replaces: 242047604)			Immediately	$ 31.67
6	5304532110		Harness, Wiring, Main		Appelez-nous	-
13	5304522303		Cover, Electricals, Compressor		Appelez-nous	-
14	5304532073		Heater, Defrost		Appelez-nous	-
15	5304532111		Evaporator				$ 90.55
16	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
17	241801301		Trough-drain				$ 64.46
19	5304532112		Bracket, Defrost, Heater		Appelez-nous	-
20	5304532114		Support, Eps, Right		Appelez-nous	-
22	5304533525		Base, Compressor Mtg.		Appelez-nous	-
23	811978901		Grommet, Compressor		Appelez-nous	-
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	807694801		Pan-defrost				$ 72.29
29	5303918884		Compressor, Assembly, Th1114   (Replaces: 5304522339)			Immediately	$ 193.81
30	5304538465		Controller, Compressor Ptc   (Replaces: 5304522267)			Immediately	$ 33.52
32	297030500		Clamp, Elec Cont Mtg, Compressor			Immediately	$ 12.05
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
41	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46
44	5304454459		Clamp, Cable		Appelez-nous	-
45	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
55	5304530011		Capacitor			Immediately	$ 27.86
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	240569202		Screw, 8-18 X .500				$ 2.12
59	241946106		Shroud-cond Fan				$ 45.36
60	242018303		Motor, Condenser Fan				$ 68.09
61	241639502		Blade, Condenser Fan			Immediately	$ 21.99
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
85	5304530251		Tube, Connector, Suction			Immediately	$ 22.05
19A	5304532113		Bracket, Defrost, Heater		Appelez-nous	-
20A	5304532115		Support, Eps, Left		Appelez-nous	-
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NI	5304527119		Screw, Drilling, 10-24 X 3/4		Appelez-nous	-
NI	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
NI	215346903		Tube, Process   (Replaces: 215346902)			Immediately	$ 10.57
NI	5304453923		Screw, Hex Hd Wshr, #8-32 X 1/2		Appelez-nous	-
NIA	240409302		Spacer-cond Tube, Black				$ 67.49
NIA	218709101		Screw, Hex Head, 10-32 X 0.500				$ 6.38
NIA	240346701		Tape, Foam Seal, Shroud				$ 29.77
NIB	240359403		Screw-fan Shroud, (2)				$ 3.79

    View Diagram in Separate Window       Print Part List
