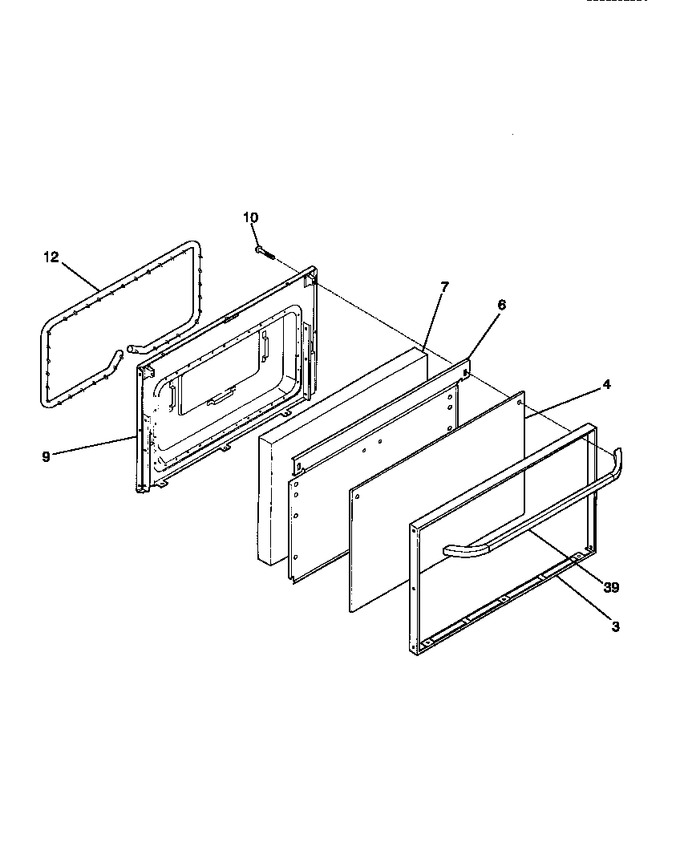

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316067802		Trim-oven Door		Appelez-nous	-
4	5303051153		Glass-oven Door, Solid Black, Outer		Appelez-nous	-
6	5303209317		Shield-insulation, Black		Appelez-nous	-
7	316439802		Insulation, Oven Door   (Replaces: 316076400)			Immediately	$ 192.78
9	316066602		Liner-oven Door		Appelez-nous	-
10	316001002		Screw-oven Door, Washer Head, 10-24 X 1.81				$ 14.89
12	5303131601		Seal-oven Door				$ 374.63
39	5304529996		Handle-door, Black, Oven   (Replaces: 316060200)				$ 156.11
*04571	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*04572	316065300		Plate Warning/caution		Appelez-nous	-
*04573	5303212671		Screw, Cr Pan Hd Sems, 8-32bp X 1.00		Appelez-nous	-
*04574	5303212762		Screw,8-18 X 1/2		Appelez-nous	-
*04575	5303269859		Screw 8-18 X 1/2 Black		Appelez-nous	-
*04576	5303285179		Screw-oven Door, Wafer Head, 8-32(t) X 1/2				$ 13.46
