02 - Cabinet, Base, Washer Top, Lid

Diagram for 03 - Washer Outer Tub, Inner Tub, Sub To
03 - Washer Outer Tub, Inner Tub, Sub To

Diagram for 04 - Washer Mechanism
04 - Washer Mechanism

Diagram for 05 - Console
05 - Console


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303211089 Screw (4) Appelez-nous -
2 131374210 Hinge Bar, Rh Special Order $ 56.02

3 5303208748 Bumper Appelez-nous -
4 131385910 Hinge-bar,lh Special Order $ 53.67

5 5303208743 Grommet Special Order $ 5.63

6 131377900 Lid-white Appelez-nous -
7 134890500 Spring   (Replaces: 5303212876) Special Order $ 19.85

9 131390000 Lid Strike   (Replaces: 3204367) Special Order $ 55.19

11 3204368 Screw Special Order $ 13.01

12 134075500 Bumper   (Replaces: 3204369) Special Order $ 17.35

13 5303208751 Hinge Special Order $ 33.50

14 131168200 Screw In-Stock Immediately $ 14.18

15 3205821 Clip In-Stock Immediately $ 35.44

16 5304505407 Service Cord   (Replaces: 5303208765) Special Order $ 88.20

17 5303209428 Bushing Special Order $ 17.01

18 131346400 Locating Pin Special Order $ 12.44

21 5308014903 Capacitor Appelez-nous -
22 5303161252 Bracket-capacitor Appelez-nous -
23 131210200 Hose-drain Special Order $ 59.21

24 5303204987 Retainer Appelez-nous -
25 3204375 Check Valve Special Order $ 48.06

26 131127616 Clamp Appelez-nous -
27 131205100 Screw In-Stock Immediately $ 14.18

28 3204376 Coupler Appelez-nous -
30 131202300 Screw In-Stock Immediately $ 13.46

33 131258000 Valve-water Appelez-nous -
34 131205500 Screw Special Order $ 13.46

35 5308002385 Snubber Ring Special Order $ 54.86

36 3204380 Shipping Block Special Order $ 12.29

37 131102900 Shipping Screw Appelez-nous -
38 5303300247 Base Appelez-nous -
39 5303272067 Leveling Leg & Pad Appelez-nous -
40 5303004083 Pad-leg Appelez-nous -
41 131302800 Screw   (Replaces: 131258400) In-Stock Immediately $ 26.58

42 131104303 Panel - Front - White Special Order $ 309.70

43 131346400 Locating Pin Special Order $ 12.44

46 131207100 Body-white Appelez-nous -
49 131243800 Screw Special Order $ 10.46

50 3205646 Lid Lock Appelez-nous -
51 5303306138 Bracket Appelez-nous -
52 08002420 Rivet Appelez-nous -
53 131386212 Panel Top-white Appelez-nous -
54 5303208778 Bleach Dispenser Special Order $ 51.71

56 131422200 Pad-leg   (Replaces: 5303293754) In-Stock Immediately $ 56.70


    View Diagram in Separate Window     Print Icon   Print Part List

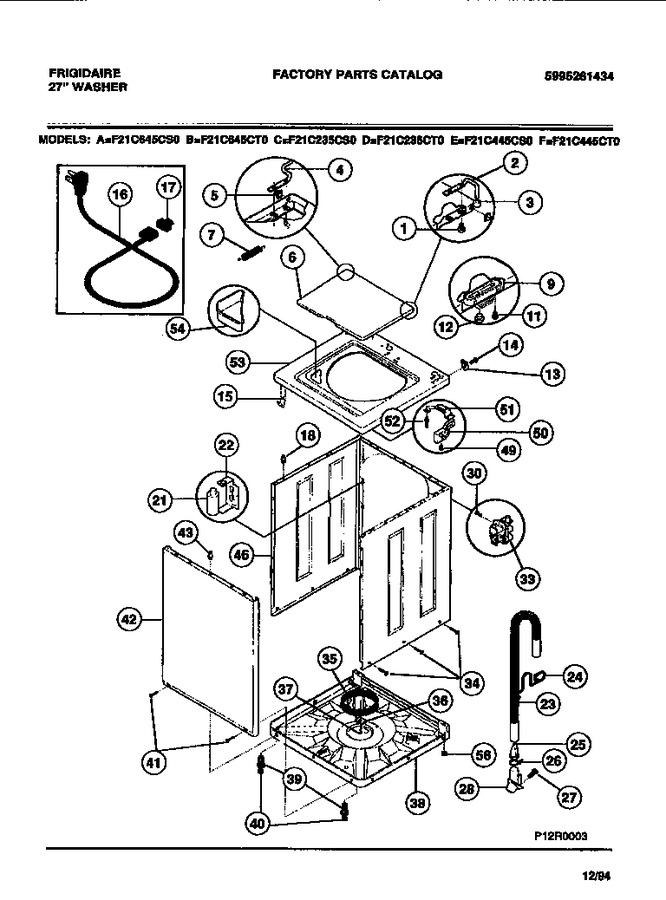

Diagram for F21C235CS0
