01 - Cover Sheet
02 - Cooktop Parts

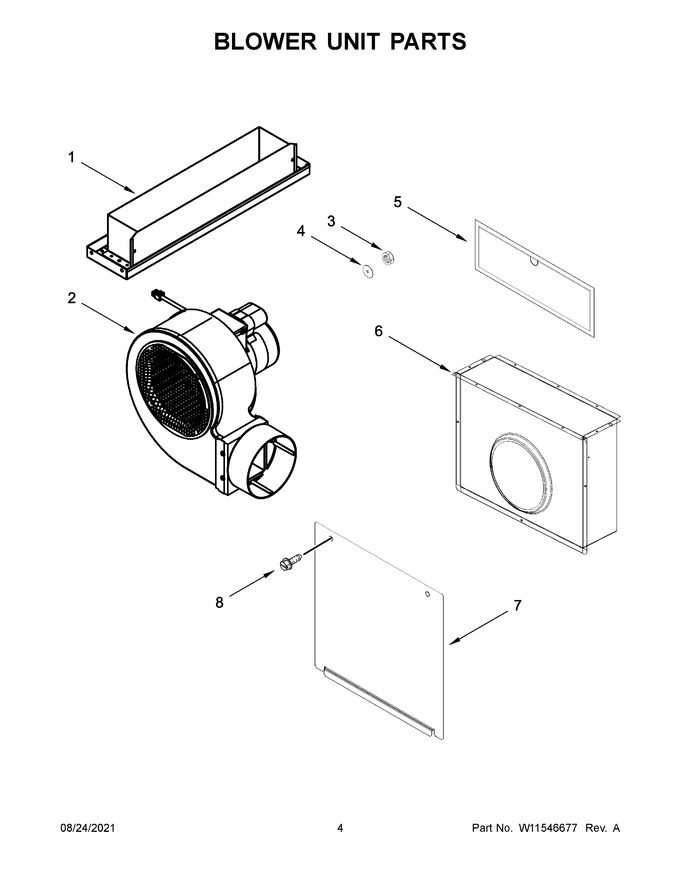

03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10872755 | Assembly, Top Plenum |
|
$ 160.89 | |||||
| 2 | W11083804 | Assembly, Downdraft Blower (Replaces: W10877782) |
|
Immediately | $ 572.27 | ||||
| 3 | 7103P16260 | Nut, Lock |
|
- | |||||
| 4 | 7109P08660 | Washer |
|
- | |||||
| 5 | W10905834 | Filter, Grease (Replaces: W10815866) |
|
Immediately | $ 25.83 | ||||
| 6 | W11826357 | Assembly, Lower Plenum (Replaces: W10837738) |
|
$ 163.38 | |||||
| 7 | W11825099 | Panel, Lower Plenum Access (Replaces: W10837737) |
|
$ 47.48 | |||||
| 8 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 6.47 |
