01 - Cover Sheet

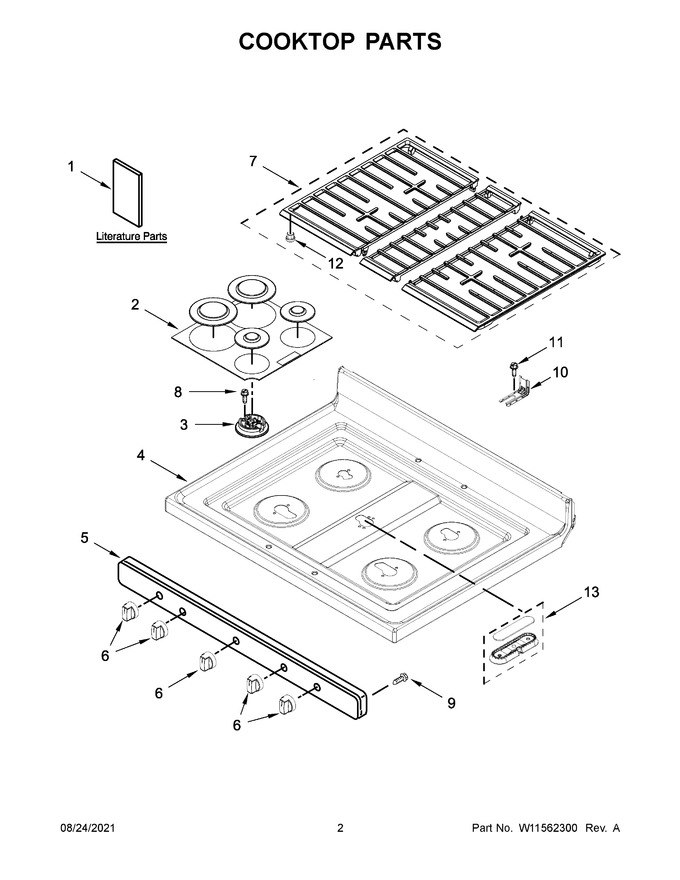

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11450808 | Owners Manual |
|
- | |||||
| 2 | W11834859 | Burner Cap Kit (black (set Of 4) (black Models)) (Replaces: W11352138) |
|
- | |||||
| 3 | W11435630 | Spreader, Flame (left Front And Right Front) (Replaces: W11352018) |
|
Immediately | $ 70.62 | ||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 364.91 | ||||
| 5 | W11165140 | Panel, Manifold (stainless) (Replaces: W11044911) |
|
$ 310.07 | |||||
| 6 | W11159630 | Knob, Control (stainless) (Replaces: W11023139) |
|
Immediately | $ 60.35 | ||||
| 7 | W11252165 | Grate Kit (black (set Of 3)) (Replaces: W11090908) |
|
$ 355.20 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 12.63 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 | ||||
| 10 | W11447673 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.64 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 12 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 11.30 | ||||
| 13 | W11435660 | Spreader, Flame (center) (Replaces: W11367086) |
|
Immediately | $ 88.70 | ||||
| 1A | W11524748 | Quick Start Guide |
|
- | |||||
| 1B | W11523160 | Tech Sheet |
|
- | |||||
| 3A | W11435659 | Spreader, Flame (left Rear) (Replaces: W11352020) |
|
$ 72.73 | |||||
| 3B | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 72.37 | |||||
| 5A | W11165142 | Panel, Manifold (black Stainless) (Replaces: W11044910) |
|
$ 311.09 | |||||
| 6A | W11239985 | Knob, Control (black Stainless) (Replaces: W11032553) |
|
Immediately | $ 69.54 | ||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | |||||
| NI | W10849001 | Harness, Main |
|
$ 161.78 | |||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 185.62 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 |
