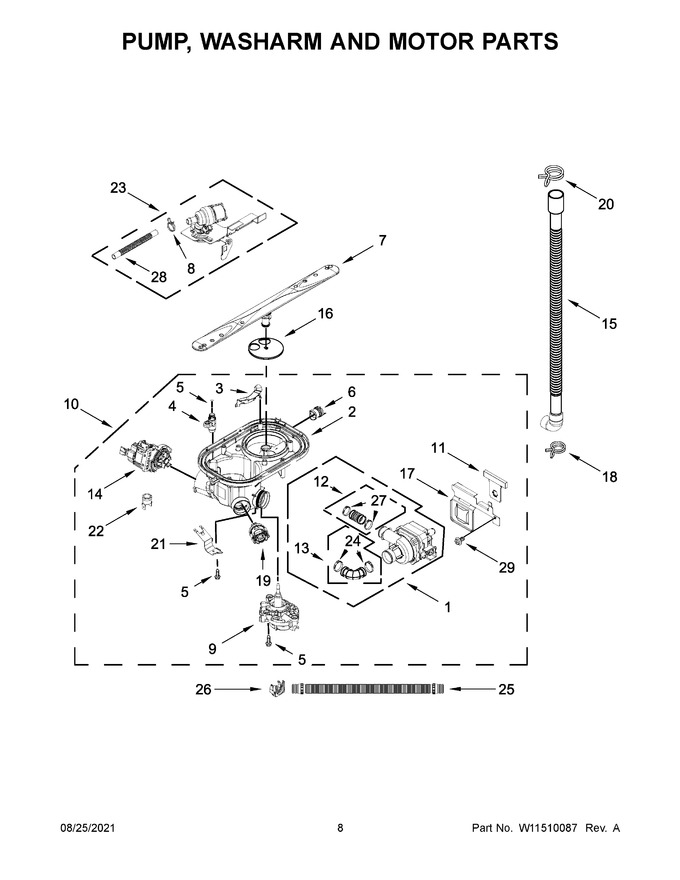

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11460963 | Pump Assembly (Replaces: W11035712) |
|
Immediately | $ 319.07 | ||||
| 2 | W11443105 | Sump With Seal (includes 3, 4, 5, 6 & 9) (Replaces: W11034554) |
|
$ 249.46 | |||||
| 3 | W10891543 | Diffuser, Inlet |
|
$ 25.21 | |||||
| 4 | W11050773 | Drain Vent Assembly |
|
$ 20.99 | |||||
| 5 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 4.82 | ||||
| 6 | W11622925 | Check Valve, Drain (Replaces: W10891547) |
|
$ 17.33 | |||||
| 7 | W11806547 | Wash Arm Assembly (Replaces: W11164607) |
|
Immediately | $ 117.14 | ||||
| 8 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 7.94 | ||||
| 9 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 10 | W11460945 | Motor & Sump Assembly (Replaces: W11299377) |
|
Immediately | $ 344.17 | ||||
| 11 | W11450247 | Isolator, Rear Motor |
|
$ 44.47 | |||||
| 12 | W11419334 | Hose, Pressure (Replaces: W11250985) |
|
Immediately | $ 45.77 | ||||
| 13 | W11460960 | Hose, Suction (Replaces: W10900389) |
|
$ 66.87 | |||||
| 14 | W11412291 | Motor, Drain (Replaces: W11035709) |
|
Immediately | $ 132.71 | ||||
| 15 | W11414944 | Hose, Drain (Replaces: W11131184) |
|
Immediately | $ 29.31 | ||||
| 16 | W11580016 | Disc, Diverter (Replaces: W11175571) |
|
$ 15.22 | |||||
| 17 | W11497568 | Bracket, Rear Motor (Replaces: W11025961) |
|
$ 30.18 | |||||
| 18 | W11545578 | Clamp, Hose (Replaces: W11236576) |
|
$ 22.29 | |||||
| 19 | W11410464 | Indicator, Optical Wash (Replaces: W11126174) |
|
Immediately | $ 27.20 |
