View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

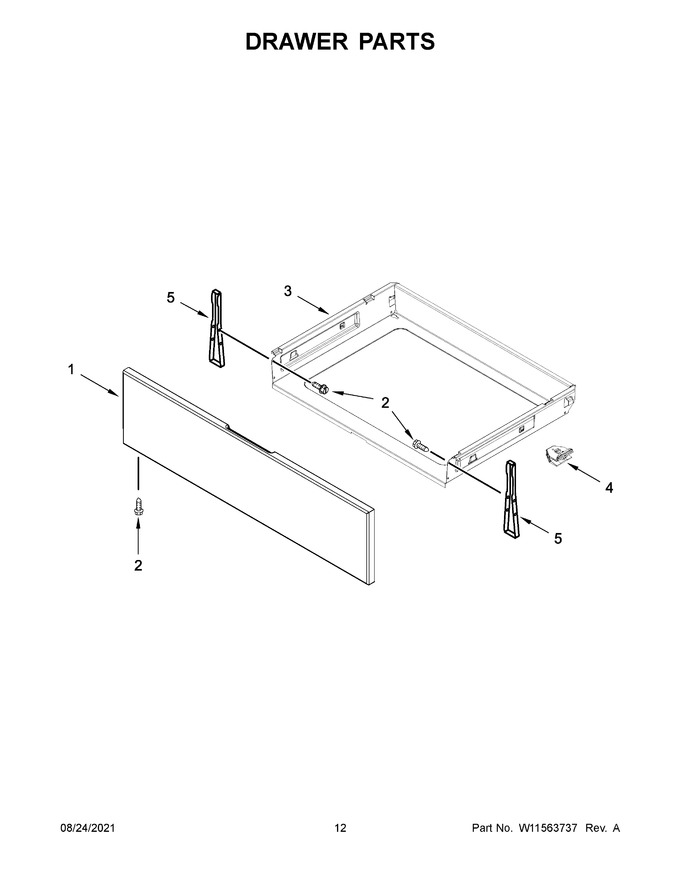

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11252164 | Panel, Drawer Front (stainless) (Replaces: W11190210) |
|
$ 185.25 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 124.34 | ||||
| 4 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 16.69 | ||||
| 5 | W11759228 | Bracket, Mounting (Replaces: W10462909) |
|
$ 23.55 |
