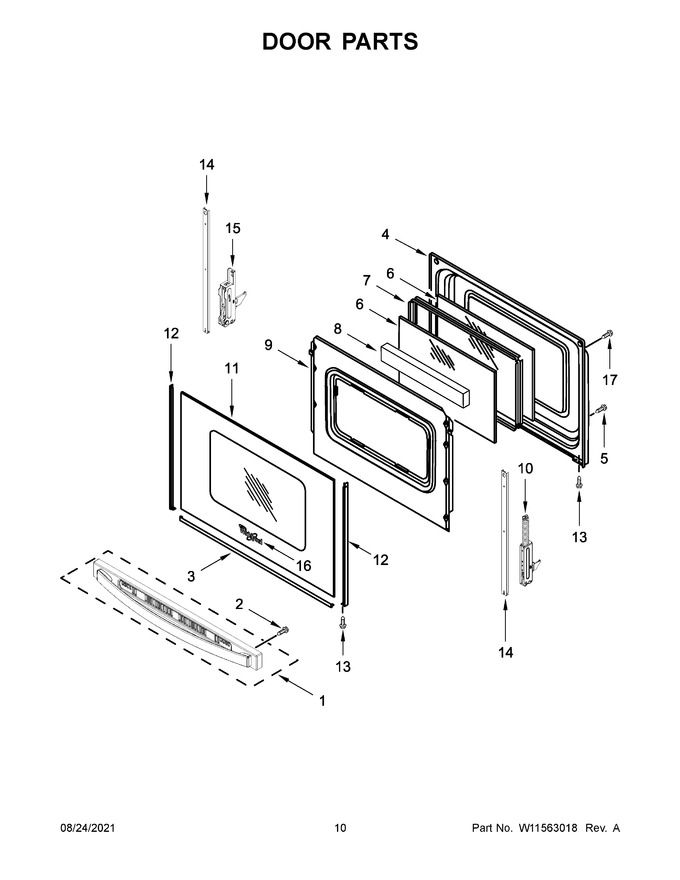

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11449263 | Handle And Vent Assembly (stainless) (Replaces: W11242950) |
|
Immediately | $ 208.31 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.09 | ||||
| 3 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
Immediately | $ 142.16 | ||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 319.62 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11159620 | Glass, Inner (Replaces: W11044424) |
|
Immediately | $ 159.78 | ||||
| 7 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 76.37 | ||||
| 8 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 86.89 | ||||
| 9 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 199.17 | |||||
| 10 | WPW10299224 | Hinge, Active (with Spring) (Replaces: W10299224) |
|
Immediately | $ 66.12 | ||||
| 11 | W11702167 | Glass, Outer Door (black) (Replaces: W10884159) |
|
Immediately | $ 158.34 | ||||
| 12 | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 48.39 | ||||
| 13 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.26 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 23.72 | ||||
| 15 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 16 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 17 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.00 | ||||
| 12A | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 |
