01 - Cover Sheet

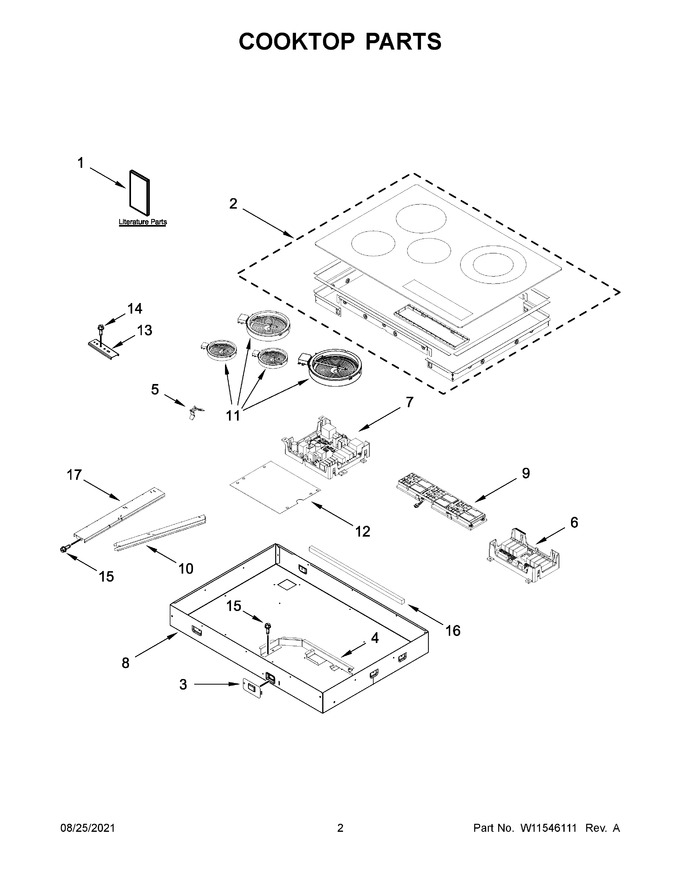

02 - Cooktop Parts
03 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11439183 | Installation Instructions |
|
- | |||||
| 2 | W11281373 | Cooktop (black) (Replaces: W11120998) |
|
$ 835.15 | |||||
| 3 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 4 | W11102056 | Shield, Heat |
|
- | |||||
| 5 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 6 | W11281836 | Appliance Manager, Expansion (Replaces: W11115982) |
|
$ 430.85 | |||||
| 7 | W11350287 | Appliance Manager, Copernicus (Replaces: W11296738) |
|
$ 436.10 | |||||
| 8 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 9 | W11547171 | Ui Assembly (Replaces: W11420422) |
|
$ 519.80 | |||||
| 10 | W11102044 | Short Rail, Vertical |
|
- | |||||
| 11 | WPW10342780 | Element (1300w) (left Front) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 12 | W11242976 | Pad, Insulation |
|
- | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 14 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 15 | 7101P42660 | Screw |
|
- | |||||
| 16 | W11260678 | Top, Foam (heat Shield) (Replaces: W11177346) |
|
$ 21.18 | |||||
| 17 | W11102042 | Rail, Vertical |
|
$ 17.47 | |||||
| 11A | WP8273993 | Element (1800w) (left Rear) (Replaces: 8273993) |
|
Immediately | $ 220.06 | ||||
| 11B | W11171119 | Element (1200w) (center) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 11C | W11517959 | Element (3000/1400w) (right Rear) (Replaces: W10275048) |
|
Immediately | $ 121.00 | ||||
| 1A | W10351318 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11439184 | Owner's Manual |
|
- | |||||
| 1C | W11238371 | Diagram, Wiring |
|
- | |||||
| 1D | W10550651 | Tech Sheet (english) |
|
- | |||||
| 1E | W10550652 | Tech Sheet (french) |
|
- | |||||
| NI | W11111804 | Harness, Main |
|
- | |||||
| NI | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| NI | WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | ||||
| NI | W11260679 | Insulation, Cooktop (Replaces: W11160362) |
|
- | |||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- |
