SELECT A DIAGRAM

02 - Cabinet, Base, Washer Top, Lid


03 - Washer Outer Tub, Inner Tub, Sub To


04 - Washer Mechanism


05 - Console

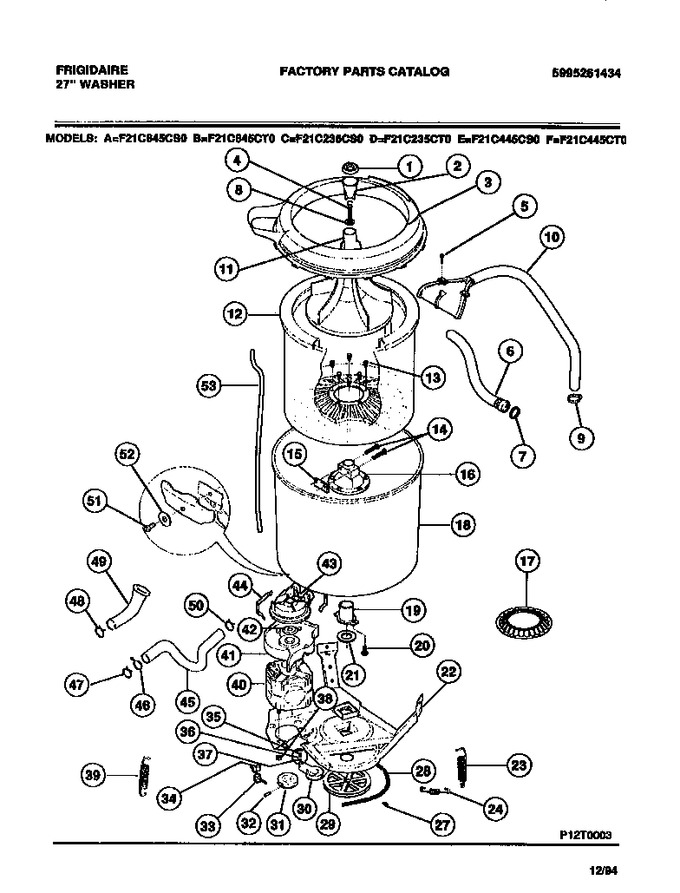

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131266800		Cap-dispenser				$ 46.67
2	131206100		Cup-dispenser				$ 52.82
3	131221500		Cover, Splash Tub		Appelez-nous	-
4	131308500		Screw		Appelez-nous	-
5	131205300		Screw			Immediately	$ 12.10
6	3804FF		Hose-inlet (2)   (Replaces: 5303271009)			Immediately	$ 16.80
7	5303161296		Washer			Immediately	$ 2,372.96
8	131339600		Spacer				$ 18.79
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	3204400		Nozzle & Hose		Appelez-nous	-
11	131221400		Agitator		Appelez-nous	-
12	131221300		Spin Tub		Appelez-nous	-
13	137546400		Screw (5)   (Replaces: 5303283293)				$ 28.35
14	137539500		Screw   (Replaces: 131192800)				$ 20.24
15	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 26.94
16	131154501		Trunnion		Appelez-nous	-
17	131219900		Filter, Lint				$ 71.40
18	3204404		Splash Tub & Bearing		Appelez-nous	-
19	3204405		Bearing-upper Spin			Immediately	$ 97.81
20	3205150		Screw				$ 3.55
21	5308002401		Washer			Immediately	$ 16.00
22	131373600		Leg & Dome Assembly		Appelez-nous	-
23	134886600		Spring-vertical (short)   (Replaces: 5303208858)			Immediately	$ 37.57
24	131373900		Spring-horizontal				$ 41.30
27	5303304825		Screw		Appelez-nous	-
28	134511600		Belt   (Replaces: 131234000)			Immediately	$ 28.41
29	131361800		Pulley-transmission		Appelez-nous	-
30	13132800		Idler Arm Assembly		Appelez-nous	-
31	3204423		Pulley-motor				$ 140.07
32	3204424		Roll Pin				$ 12.60
33	3204425		Spring Torsion				$ 45.09
34	3204426		Sleeve-idler Pivot				$ 9.35
35	3161433		Retaining Ring				$ 18.79
36	5303261031		Washer-pivot Shaft				$ 12.71
37	530316306		Spring Washer		Appelez-nous	-
38	5303283079		Hex Nut (4)		Appelez-nous	-
39	134885900		Spring-vertical (2)   (Replaces: 5303208860)				$ 21.27
40	5303284905		Motor-main		Appelez-nous	-
41	131081700		Shield-motor				$ 84.26
42	3204451		Slinger-pump		Appelez-nous	-
43	131208500		Pump		Appelez-nous	-
44	131217100		Clip-pump		Appelez-nous	-
45	3204454		Hose-pump To Coupler		Appelez-nous	-
46	3204455		Clip-hose To Leg		Appelez-nous	-
47	3204456		Clamp		Appelez-nous	-
48	3204457		Clamp		Appelez-nous	-
49	3204458		Hose-pump To Tub				$ 147.09
50	3204456		Clamp		Appelez-nous	-
51	3204459		Screw				$ 24.20
52	131315800		Washer		Appelez-nous	-
53	5304401845		Pressure Tube   (Replaces: 5300771996)				$ 58.12
*77800	5303212877		Insert-spring Adjustment				$ 18.38
40B	5303293588		Switch-motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
