Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 131141701 Backsheet Appelez-nous -
2 131243700 Screw Special Order $ 3.36

4 3161188 Screw Appelez-nous -
5 131237300 Switch-pressure Appelez-nous -
6 131168200 Screw In-Stock Immediately $ 14.18

8 131205100 Screw (4) In-Stock Immediately $ 14.18

9 131081200 Switch-temperature Appelez-nous -
12 131122712 End Cap Lh-almond Appelez-nous -
14 5303289526 Screw Appelez-nous -
19 131297306 Bracket-controls Appelez-nous -
20 131166100 Harness Appelez-nous -
21 131243800 Screw - Grd - Top Panel Special Order $ 10.46

25 5308015493 Spacer-timer Shaft Special Order $ 14.36

26 131197000 Clip Special Order $ 13.62

13A 131122702 End Cap-rh-almond Appelez-nous -
15A 131140702 Dial-almond Appelez-nous -
16A 131140602 Knob-timer-almond Appelez-nous -
18F 131402000 Panel, Control, Almond Appelez-nous -
24A 131141102 Knob-rotary-almond Appelez-nous -
30A 131122612 Cover-l.h.-almond Appelez-nous -
31A 131122602 Cover-r.h-almond Appelez-nous -
3B 131238000 Timer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

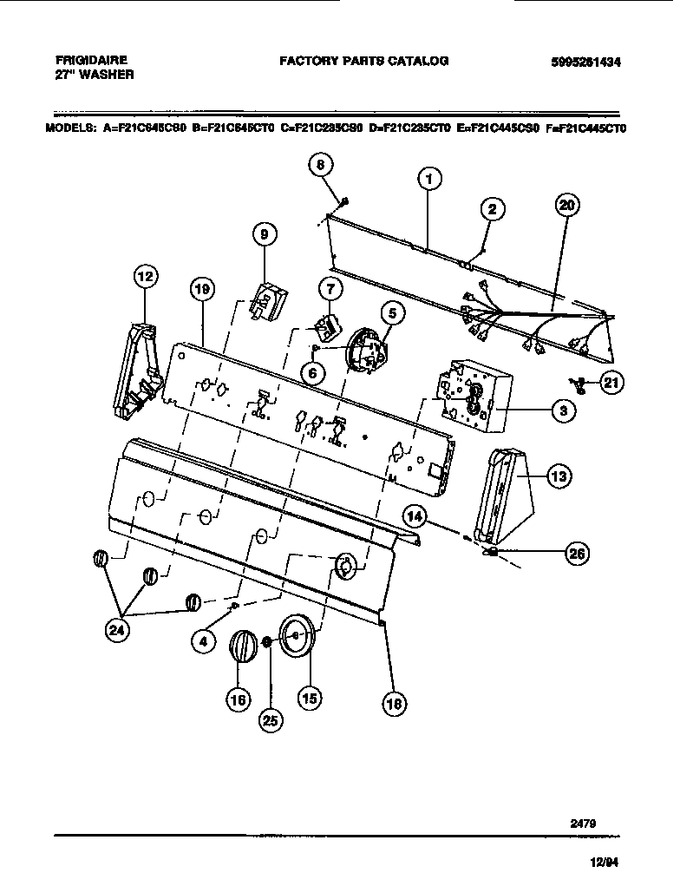

Diagram for F21C445CT0
