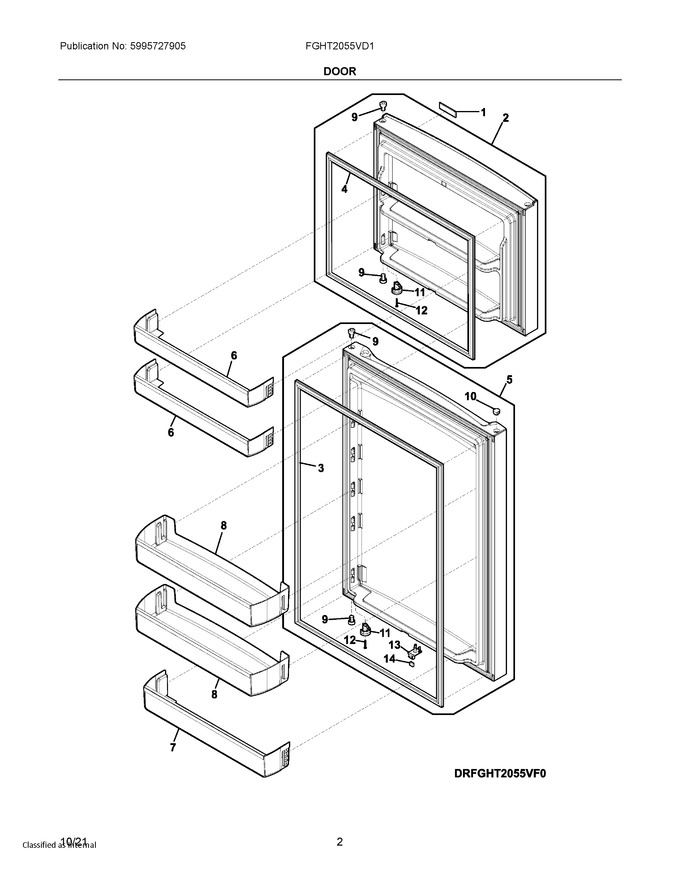

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304510904		Nameplate, Black Stainless, Frig Gallery				$ 54.60
2	5304528921		Door Assembly, Freezer, Black Stainless, W/gasket-hrdwre				$ 313.52
3	5304528905		Gasket, Door, Black, Fresh Food				$ 205.12
4	5304528906		Gasket, Door, Black, Freezer			Immediately	$ 186.95
5	5304528917		Door Assembly, Fresh Food, Black Stainless, W/gasket-hrdwre				$ 364.24
6	5304528879		Bin, Door, Freezer				$ 89.85
7	5304528877		Bin, Door, 4", Clear, Fresh Food				$ 89.85
8	140137082024		Bin, Door, 6", Clear, Fresh Food   (Replaces: 5304528878)		Appelez-nous	-
9	5304522194		Bearing, Hinge, Gray			Immediately	$ 2.28
10	5304522187		Cover, Hinge Bearing, Gray			Immediately	$ 7.44
11	5304522238		Hook, Door Closer, Gray			Immediately	$ 8.34
12	241953905		Screw, 8-18 X 1.25			Immediately	$ 11.38
13	5304528883		Housing, Sensor Magnet, Ff Door			Immediately	$ 9.10
14	5304519044		Magnet, Reed Switch			Immediately	$ 18.95
NI	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
