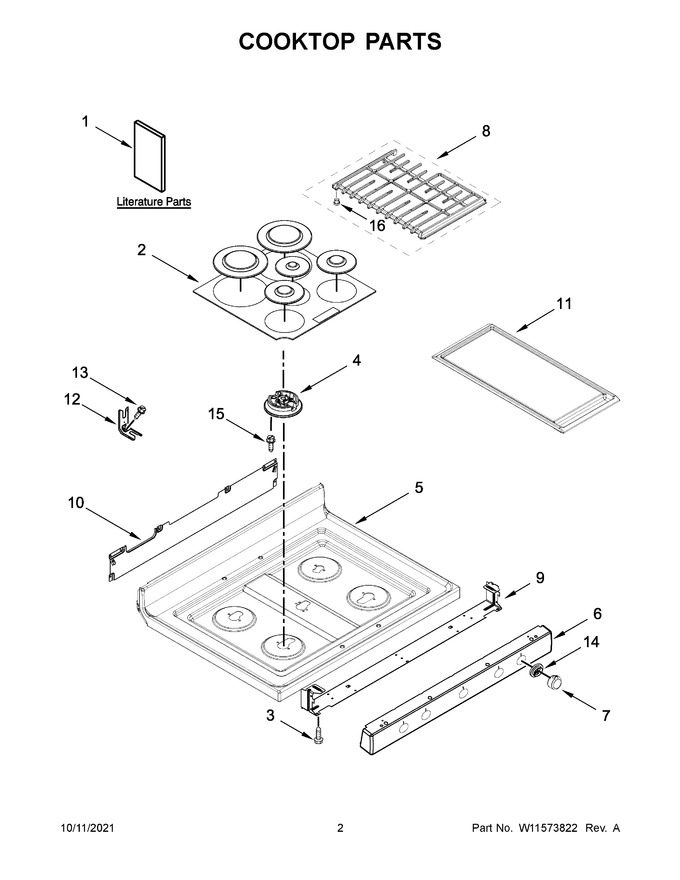

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426598 | Owners Manual |
|
- | |||||
| 2 | W11369523 | Burner Cap Kit (black (set Of 5)) |
|
$ 80.87 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 4 | W11435630 | Spreader, Flame (left Front & Right Front) (Replaces: W11352018) |
|
Immediately | $ 70.62 | ||||
| 5 | W11478143 | Cooktop (white) (Replaces: W11418084) |
|
$ 352.89 | |||||
| 6 | W10724448 | Panel, Manifold (white) |
|
$ 234.77 | |||||
| 7 | W11030413 | Knob (stainless) (Replaces: W10786063) |
|
Immediately | $ 68.58 | ||||
| 8 | W11381340 | Grate Kit (black (set Of 2)) (Replaces: W11241658) |
|
$ 338.74 | |||||
| 9 | W11379946 | Manifold Panel Bracket |
|
- | |||||
| 10 | W11379358 | Rear Gas Cooktop Bracket |
|
- | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 51.00 | ||||
| 12 | W11447673 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.64 | ||||
| 13 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 14 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 97.19 | ||||
| 15 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 12.63 | ||||
| 16 | W10919249 | Grate, Bumper (Replaces: W10465081) |
|
Immediately | $ 11.30 | ||||
| 1A | W11382313 | Tech Sheet |
|
- | |||||
| 1B | W11427469 | Quick Start Guide |
|
- | |||||
| 4A | W11435659 | Spreader, Flame (right Rear) (Replaces: W11352020) |
|
$ 72.73 | |||||
| 4B | W11435657 | Spreader, Flame (left Rear) (Replaces: W11352021) |
|
$ 72.37 | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | W11451585 | Harness, Main |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 185.62 | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.26 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 |
