SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body


04 - Door


05 - Wiring Diagram


06 - Wiring Diagram

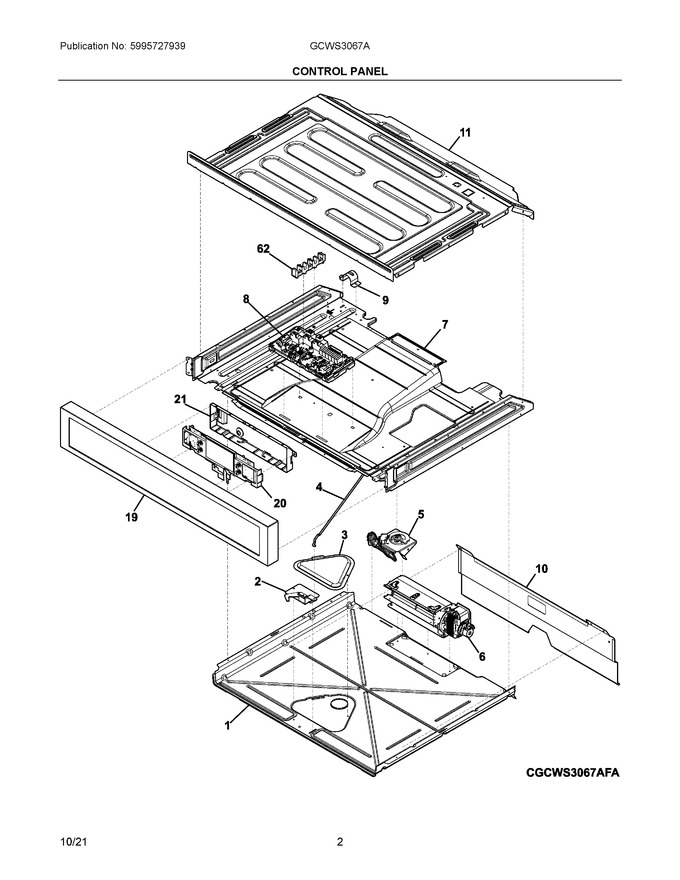

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526320		Shield, Bottom Duct		Appelez-nous	-
2	5304526367		Latch, Door				$ 15.17
3	5304526366		Cover, Vent		Appelez-nous	-
4	5304526368		Rod, Latch				$ 10.62
5	140282916018		Motor Assembly, Door Latch/lock   (Replaces: 5304526552)		Appelez-nous	-
6	140175788037		Blower Assembly   (Replaces: 5304530368)			Immediately	$ 100.37
7	5304526538		Carrier Plate, Assembly, W/duct		Appelez-nous	-
8	140171068061		Board Assembly, Ovc Control, W/bracket   (Replaces: 5304526480)			Immediately	$ 127.86
9	5304530364		Bracket, Conduit Mtg.		Appelez-nous	-
10	5304530427		Shield, Insulation, Rear, Upper		Appelez-nous	-
11	5304526328		Shield, Top Cover		Appelez-nous	-
19	5304526476		Control Panel, Assembly, Steel/glass, Stainless/black, W/cntl Bracket				$ 296.37
20	5304536936		Controller, Electronic, Ui720s, Oven   (Replaces: 5304526578)				$ 175.50
21	5304523582		Housing, Controller			Immediately	$ 34.13
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
NI	5304535368		Harness, Conduit Assy., Power Connect   (Replaces: 5304525431)				$ 154.45
NI	5304526516		Harness				$ 187.22
NI	5304526232		Screw		Appelez-nous	-
NI	5304526497		Harness		Appelez-nous	-
NI	5304526498		Harness		Appelez-nous	-
NI	387872717		Screw		Appelez-nous	-
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIB	5304528293		Screw		Appelez-nous	-
NIC	316001017		Screw				$ 3.03

    View Diagram in Separate Window       Print Part List
