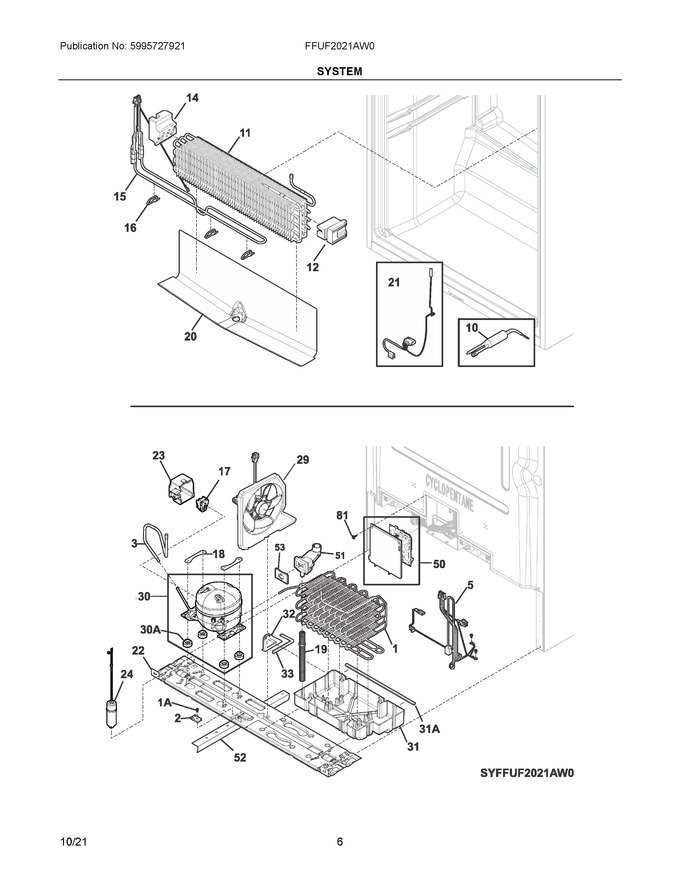

04 - System
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304533258 | Condenser, Dynamic (Replaces: 5304523710) |
|
$ 138.22 | |||||
| 2 | 5304454459 | Clamp-cable |
|
- | |||||
| 3 | 5304537689 | Tube, Suction Jumper (Replaces: 5304529283) |
|
Immediately | $ 25.38 | ||||
| 5 | 5304531478 | Harness, Wiring, Machine Comprt |
|
$ 53.03 | |||||
| 10 | A19676501 | Filter, Drier, Service |
|
Immediately | $ 99.73 | ||||
| 11 | 5304523830 | Evaporator, Coil |
|
Immediately | $ 143.67 | ||||
| 12 | 5304523831 | Support, Evaporator, Rh |
|
$ 3.62 | |||||
| 14 | 5304530284 | Support, Evaporator, Lh |
|
- | |||||
| 15 | 5304523833 | Heater, Defrost |
|
Immediately | $ 81.99 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 5304529507 | Starter |
|
Immediately | $ 51.57 | ||||
| 18 | 5304524607 | Clamp, Compressor |
|
$ 2.89 | |||||
| 19 | 5304525042 | Tube, Drain, Extension |
|
Immediately | $ 9.86 | ||||
| 20 | 5304524755 | Trough, Drain (Replaces: 5304523720) |
|
$ 51.34 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 22 | 5304523693 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 23 | 5304528888 | Cover, Electricals, Compressor |
|
$ 21.59 | |||||
| 24 | 5304528894 | Capacitor, Run, 12uf |
|
Immediately | $ 38.96 | ||||
| 29 | 5304519734 | Fan Assembly, Condenser, W/shroud-foam |
|
Immediately | $ 156.99 | ||||
| 30 | 5304539722 | Compressor, Assembly, Esx55cbc, W/grommets (Replaces: 5304529496) |
|
Immediately | $ 160.39 | ||||
| 31 | 5304523709 | Pan, Drain |
|
$ 35.42 | |||||
| 32 | 5304519745 | Baffle, Drain Pan, Air Block |
|
$ 7.80 | |||||
| 33 | 5304519751 | Seal, Foam, Air Block |
|
$ 3.08 | |||||
| 50 | 5304531498 | Board Assembly, Main, Erf300, W/housing |
|
Immediately | $ 136.20 | ||||
| 51 | 5304530111 | Drain Jumper, Assembly, W/seal |
|
$ 19.52 | |||||
| 52 | 5304523694 | Baffle, Divider |
|
$ 7.96 | |||||
| 53 | 5304525744 | Cover, Drain Jumper |
|
$ 9.68 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 1A | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 30A | 5304522323 | Grommet, Compressor |
|
$ 38.68 | |||||
| 31A | 5304523724 | Seal, Drain Pan, Foam |
|
$ 5.07 | |||||
| NI | 5304523801 | Screw, Hex Wash Hd, M4 X 10 |
|
- | |||||
| NI | 30534600 | Clip, Plastic, W/adhesive |
|
$ 3.79 | |||||
| NI | 241500305 | Screw, Hex Hd, #8-18 X 5/8 |
|
$ 3.03 | |||||
| NI | 218103403 | Wire Tie |
|
- |
