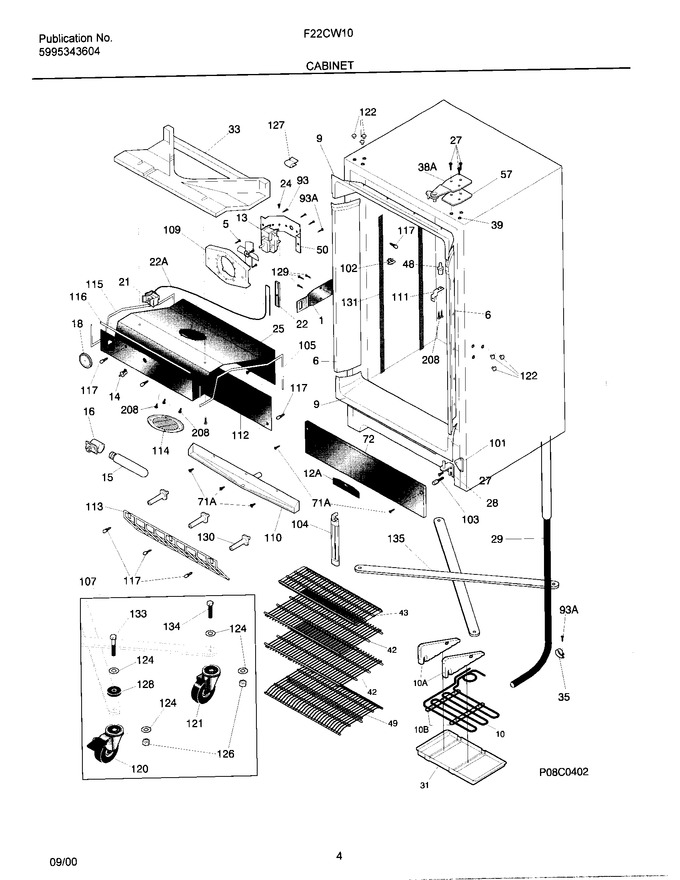

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216324200		Lock-catch		Appelez-nous	-
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 49.03
6	216604100		Breaker Kit W/corners		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
10	216750000		Heater-drain Pan Assy		Appelez-nous	-
13	5304442620		Motor-fan   (Replaces: 216690400)				$ 282.51
14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
15	5304517886		Light Bulb/lamp   (Replaces: 216518100)			Immediately	$ 73.06
16	5300136117		Socket, Light/lamp				$ 52.46
18	216591506		Knob,temp Control   (Replaces: 216591500)				$ 29.06
21	297216041		Control-temperature,nsf   (Replaces: 216579100)				$ 46.27
22	05878562		Clamp		Appelez-nous	-
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216375601		Cover-evaporator		Appelez-nous	-
27	216395900		Screw-hinge/closer		Appelez-nous	-
28	216335600		Hinge-bottom, Stepped Pin				$ 129.83
29	216361901		Hose-drain				$ 93.14
31	216732400		Pan-drain				$ 208.48
33	216680900		Duct-air		Appelez-nous	-
35	06594637		Clip		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
42	216384000		Shelf-full Frame, Wire		Appelez-nous	-
43	216386200		Shelf-partial, Wire		Appelez-nous	-
48	08000456		Spacer Baffle Plate		Appelez-nous	-
49	216331800		Trivet		Appelez-nous	-
50	08013207		Bracket Fan Motor				$ 12.92
57	216335500		Spacer-hinge, Top		Appelez-nous	-
72	216330500		Grille/kickplate		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
101	216335700		Plate-hinge, Tapping		Appelez-nous	-
102	297121900		Support Shelf,adjustable   (Replaces: 216605300)			Immediately	$ 12.13
103	216336300		Standoff-base Panel				$ 71.51
104	216360600		Thermometer		Appelez-nous	-
105	216361100		Gasket-cover Evap, Rh		Appelez-nous	-
107	216496100		Roller Set		Appelez-nous	-
109	216375700		Blower-fan		Appelez-nous	-
110	216377000		Pan-drain, Condensate				$ 222.14
111	216637800		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain,condensate				$ 134.09
113	216383600		Grate-air Intake		Appelez-nous	-
114	216382600		Cover-blower		Appelez-nous	-
115	216383700		Gasket-evap Cover, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	216495300		Roller-front				$ 250.01
121	216495200		Roller-rear		Appelez-nous	-
122	215134501		Plug-button, White		Appelez-nous	-
124	216495400		Washer-flat		Appelez-nous	-
126	216495700		Nut-caster		Appelez-nous	-
128	216393600		Spacer-caster, Front		Appelez-nous	-
129	216393300		Screw-lock Catch, One Way		Appelez-nous	-
130	06599544		Support, Evaporator		Appelez-nous	-
131	216605200		Shelf-standard		Appelez-nous	-
133	216495500		Bolt Roller Mtg, Front		Appelez-nous	-
134	216495600		Bolt-roller Mtg, Rear		Appelez-nous	-
135	216496000		Support-casters		Appelez-nous	-
208	216504500		Screw, Ab, 8-18 X .500		Appelez-nous	-
	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
	216609500		Wire Ground,nsf		Appelez-nous	-
	09948773		Insulation, Drain Tube				$ 12.60
10A	216710400		Bracket,top Drain Pan		Appelez-nous	-
10B	216710500		Bracket,btm. Drain Pan				$ 35.91
12A	216734500		Nameplate		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
38A	216365200		Door Closer		Appelez-nous	-
71A	216395800		Screw-grille/kickplate				$ 4.52
93A	5303302760		Screw				$ 8.72
