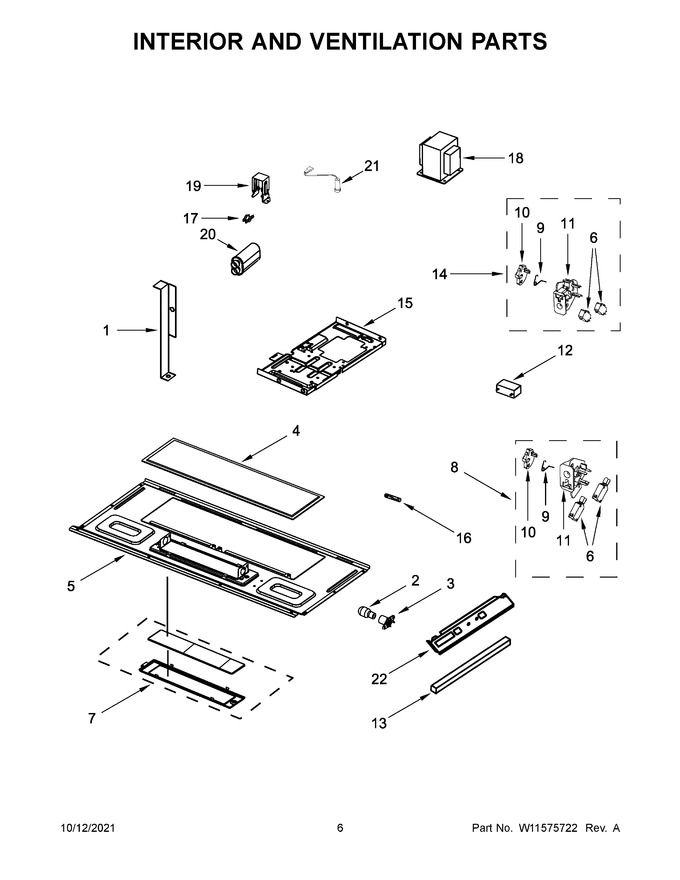

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10313275		Bracket, Top Cavity				$ 30.53
2	8206232A		Bulb, Lamp   (Replaces: 8206232)			Immediately	$ 6.61
3	W10210871		Holder, Lamp			Immediately	$ 5.75
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 29.33
5	W10245196		Plate, Bottom				$ 220.35
6	NP		Cabinet (not Serviced)		Appelez-nous	-
7	W10240330		Assembly, Lamp Glass And Holder				$ 6.47
8	W11551761		Assembly, Lower Interlock (includes Switches)   (Replaces: W11433683)			Immediately	$ 27.70
9	W10156812		Spring, Interlock			Immediately	$ 10.93
10	W10562613		Plate, Cam			Immediately	$ 16.05
11	WP8206419		Support, Interlock (top)   (Replaces: 8206419)			Immediately	$ 20.13
12	W11405832		Capacitor, Hood Motor				$ 24.52
13	W10571179		Seal, Cooling		Appelez-nous	-
14	W11551558		Assembly, Interlock (includes Switches)   (Replaces: W11433682)			Immediately	$ 30.33
15	W11520831		Chassis			Immediately	$ 56.47
16	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 41.27
17	W11224856		Thermostat, Cavity				$ 78.65
18	W11545871		Transformer, High Voltage   (Replaces: W11540983)			Immediately	$ 230.38
19	W10532063		Bracket, Capacitor				$ 25.45
20	WPW10574736		Capacitor, High Voltage   (Replaces: W10574736)				$ 153.53
21	W11256462		Diode, High Voltage   (Replaces: W11222648)			Immediately	$ 29.88
22	W11521327		Support, Ntc				$ 56.50
11A	WPW10156813		Support, Interlock (bottom)   (Replaces: W10156813)			Immediately	$ 7.26
