SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

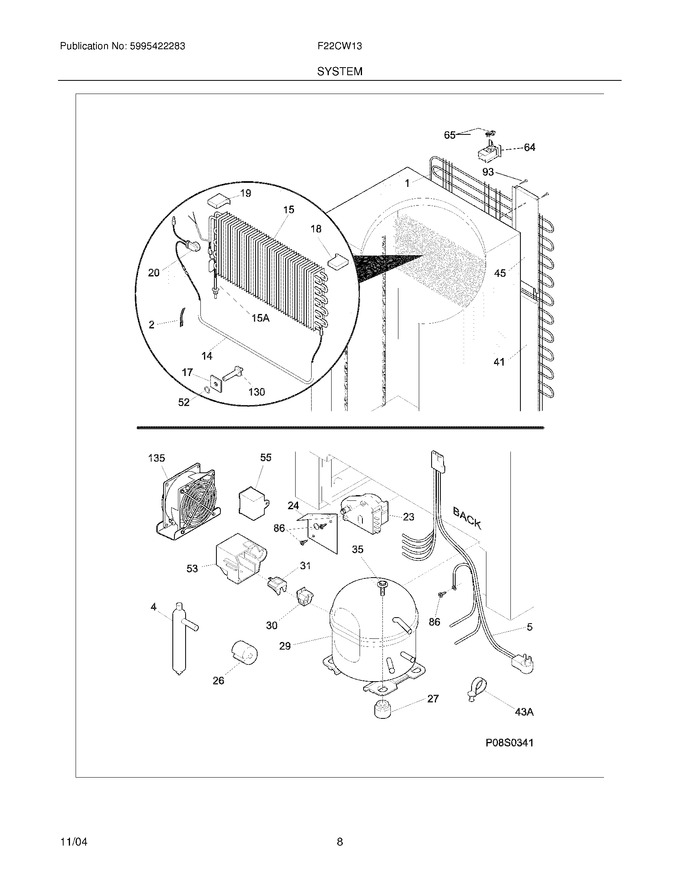

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
14	216608500		Heater-defrost				$ 161.22
17	06599546		Spacer-support, Evaporator		Appelez-nous	-
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	5304404743		Thermostat-defrost		Appelez-nous	-
24	08016580		Bracket		Appelez-nous	-
26	5303298960		Spacer-tube,0.237`` Id		Appelez-nous	-
27	218513300		Grommet-compr Mtg,(4)				$ 42.53
31	216894200		Starter,relay			Immediately	$ 35.44
35	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,shoulder,typ Cf		Appelez-nous	-
41	216524000		Cover-wiring,rear		Appelez-nous	-
45	216389900		Cover-wiring, Rear/top		Appelez-nous	-
52	08013198		Retainer, Spacer Evap		Appelez-nous	-
53	216894500		Cover-terminal		Appelez-nous	-
64	216578800		Vent				$ 47.83
65	5309950074		Valve,breather ,door Base				$ 12.48
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
130	216486800		Support,evaporator Mtg		Appelez-nous	-
135	216904300		Fan Assy,compressor		Appelez-nous	-
29No.	216966900		Compressor,assy		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
F1	5300083897		Condenser				$ 538.37
F15	216751300		Evaporator				$ 289.33
F15A	297363100		Heat Exchanger   (Replaces: 216393200)				$ 148.92
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F30	216100126		Overload Protector				$ 85.30
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216897100		Harness,electrical,fan		Appelez-nous	-
F55	297286810		Capacitor-run   (Replaces: 216894400)				$ 35.44
NI	216825600		Harness,electrical ,evaporator		Appelez-nous	-
NI	09950610		Clip		Appelez-nous	-
NI	5303311565		Clip-cable				$ 2.10

    View Diagram in Separate Window       Print Part List
