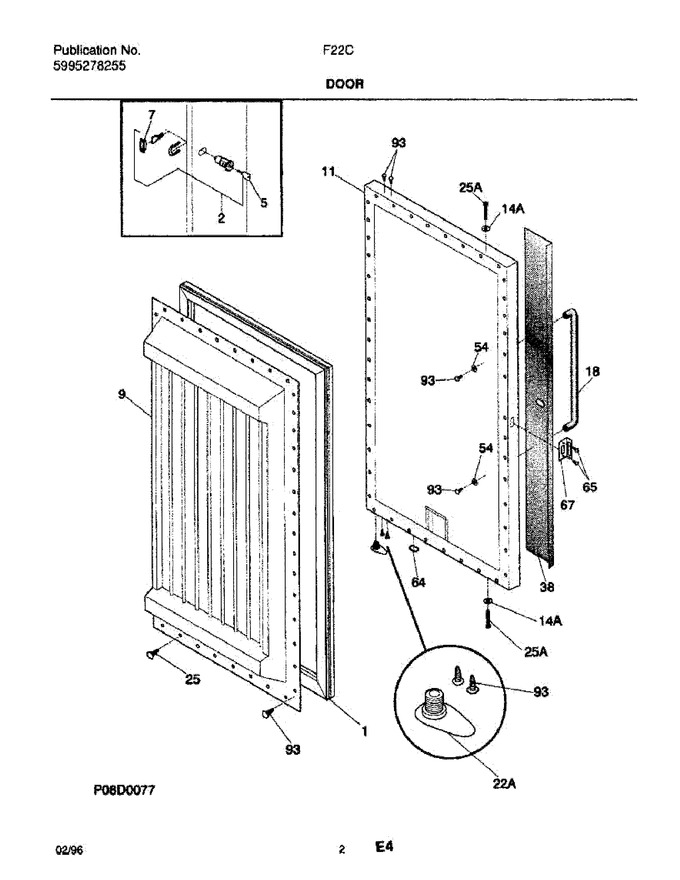

03 - Door
05 - Cabinet/control/shelves
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216284600 | Gasket-door |
|
- | |||||
| 2 | 216362700 | Lock Assy |
|
$ 90.30 | |||||
| 5 | 216362800 | Key, Lock |
|
$ 5.79 | |||||
| 7 | 216343900 | Bezel-lock |
|
- | |||||
| 9 | 216382400 | Panel-inner Door, White |
|
- | |||||
| 11 | 5303925393 | Panel-outer Door, White |
|
- | |||||
| 18 | 218395301 | Handle-door, Stainless Steel |
|
- | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 38 | 216322800 | Trim-door |
|
- | |||||
| 54 | 5303311368 | Washer, Flat |
|
- | |||||
| 64 | 216403700 | Plug-buttom, Base Door |
|
$ 58.12 | |||||
| 65 | 216423500 | Screw-retainer |
|
- | |||||
| 67 | 216423000 | Retainer-lock |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 216214800 | Insulation-door |
|
- | ||||||
| 14A | 5303307087 | Washer |
|
- | |||||
| 22A | 216335400 | Bearing-hinge |
|
$ 67.73 | |||||
| 25A | 216365400 | Screw, Adj Wire |
|
- |
