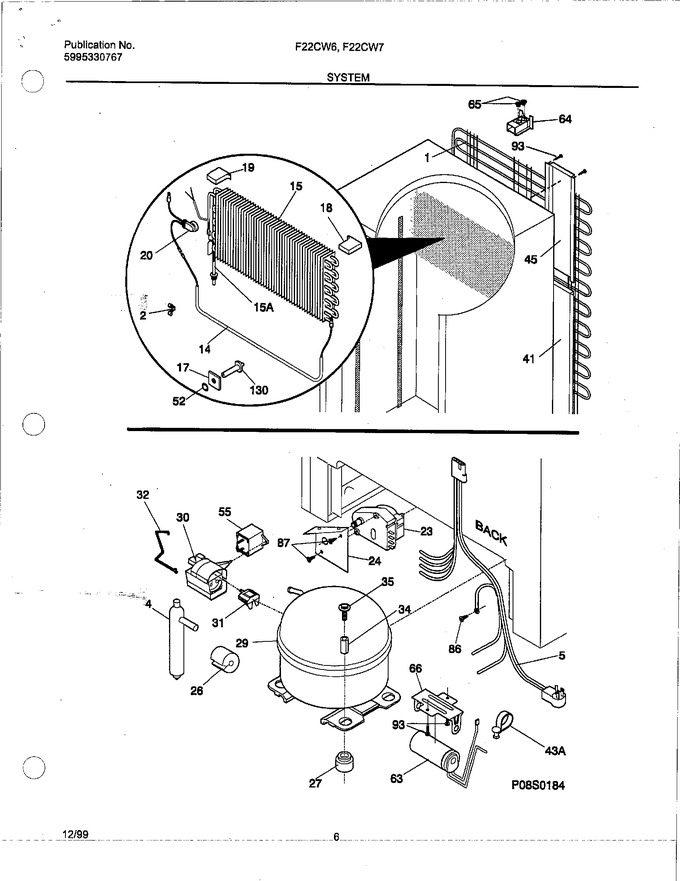

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300083897 | Condenser |
|
$ 538.37 | |||||
| 5 | 5308000010 | Fan Blade (Replaces: 216325600) |
|
Immediately | $ 49.03 | ||||
| 6 | 216604100 | Breaker Kit W/corners |
|
- | |||||
| 9 | 216603300 | Breaker Kit W/corners,32`` ,top Or Bottom |
|
$ 94.19 | |||||
| 13 | 5304442620 | Motor-fan (Replaces: 216570900) |
|
$ 282.51 | |||||
| 14 | 297243800 | Switch-light Plunger (Replaces: 216472300) |
|
$ 36.68 | |||||
| 15 | 5304517886 | Light Bulb/lamp (Replaces: 216518100) |
|
Immediately | $ 73.06 | ||||
| 16 | 5300136117 | Socket, Light/lamp |
|
$ 52.46 | |||||
| 18 | 216591506 | Knob,temp Control (Replaces: 216591500) |
|
$ 29.06 | |||||
| 21 | 297216041 | Control-temperature,nsf (Replaces: 216579100) |
|
$ 46.27 | |||||
| 22 | 05878562 | Clamp |
|
- | |||||
| 24 | 5300052943 | Screw, Clamp, Truss Hd Cr, Control |
|
$ 5.30 | |||||
| 25 | 216375601 | Cover-evaporator |
|
- | |||||
| 27 | 216395900 | Screw-hinge/closer |
|
- | |||||
| 28 | 216335600 | Hinge-bottom, Stepped Pin |
|
$ 129.83 | |||||
| 29 | 216361900 | Hose-drain |
|
- | |||||
| 31 | 5308016387 | Pan, Drain |
|
- | |||||
| 33 | 216376900 | Air Duct |
|
- | |||||
| 35 | 06594637 | Clip |
|
- | |||||
| 39 | 5303294372 | Nut Insert-hinge |
|
$ 43.68 | |||||
| 42 | 216384000 | Shelf-full Frame, Wire |
|
- | |||||
| 43 | 216386200 | Shelf-partial, Wire |
|
- | |||||
| 48 | 08000456 | Spacer Baffle Plate |
|
- | |||||
| 49 | 216331800 | Trivet |
|
- | |||||
| 50 | 08013207 | Bracket Fan Motor |
|
$ 12.92 | |||||
| 57 | 216335500 | Spacer-hinge, Top |
|
- | |||||
| 72 | 216330500 | Grille/kickplate |
|
- | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 101 | 216335700 | Plate-hinge, Tapping |
|
- | |||||
| 102 | 216359600 | Support Shelf, Adjustable |
|
- | |||||
| 103 | 216336300 | Standoff-base Panel |
|
$ 71.51 | |||||
| 5303311565 | Clip-cable |
|
$ 2.10 | ||||||
| 12A | 216496600 | Nameplate |
|
- | |||||
| 22A | 5303916855 | Tube, Plastic, Clear, Sensor Sleeve |
|
$ 60.96 | |||||
| 38A | 216365200 | Door Closer |
|
- | |||||
| 71A | 216395800 | Screw-grille/kickplate |
|
$ 4.52 | |||||
| 93A | 5303302760 | Screw |
|
$ 8.72 |
