SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

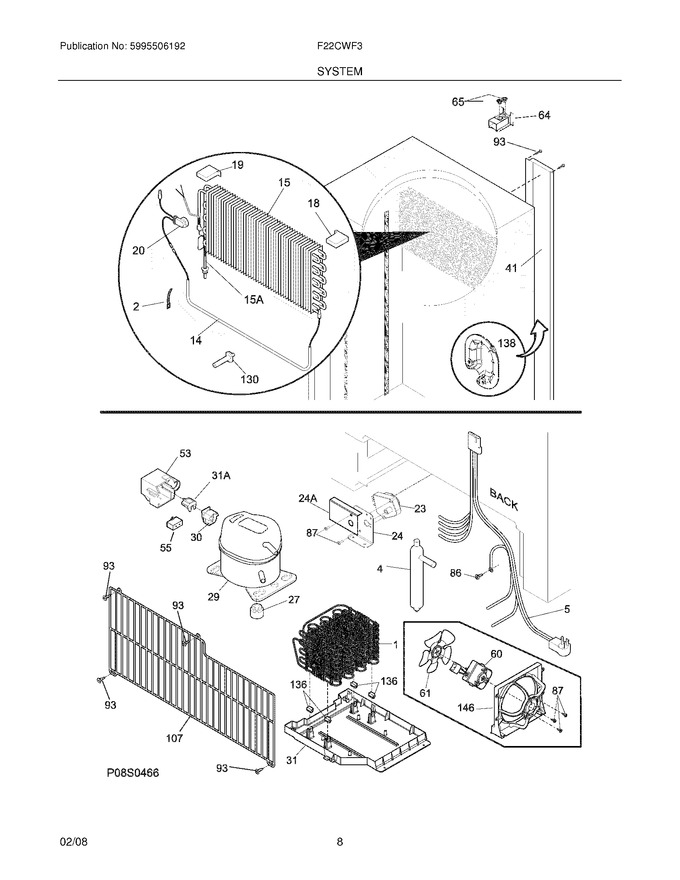

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297152201		Condenser				$ 172.79
2	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
4	216987500		Drier-filter		Appelez-nous	-
14	216730700		Heater-defrost			Immediately	$ 116.44
18	297078700		Insulator-evap,styrofoam				$ 8.14
19	297078800		Insulator-evap,styrofoam				$ 2.32
20	297216600		Thermostat,defrost   (Replaces: 216872200)			Immediately	$ 27.52
24	216968501		Bracket-timer				$ 74.70
27	297102900		Grommet,compressor		Appelez-nous	-
31	297165801		Pan-drain				$ 67.46
41	297070700		Cover-wiring,rear		Appelez-nous	-
53	216894500		Cover-terminal		Appelez-nous	-
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
64	216578800		Vent				$ 47.83
65	5309950074		Valve, Breather				$ 12.48
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
87	5304463290		Screw,hi-lo Blunt ,no.8-18x1/2 ,timer Bracket		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
107	297225500		Cover,access		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
136	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
138	297070800		Cover-drain Hose				$ 8.24
146	297164000		Shroud-fan Orfice				$ 76.97
146	216337701		Screw,hwh ,10-24 X 0.500 ,swage				$ 14.41
15A	297363100		Heat Exchanger   (Replaces: 297219100)				$ 148.92
24A	297207900		Guard,timer				$ 5.72
F15	297311300		Evaporator   (Replaces: 297052900)				$ 201.73
F23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
F29	216966900		Compressor,assy		Appelez-nous	-
F30	216894200		Starter,relay			Immediately	$ 35.44
F31A	216100126		Overload Protector				$ 85.30
F5	297170600		Harness-main				$ 59.54
F55	297286810		Capacitor-run   (Replaces: 216894400)				$ 35.44
FNI	297366805		Cord-power,flat   (Replaces: 297169900)				$ 68.68
NI	297082300		Harness-jumper		Appelez-nous	-
NI	216987800		Adapter-harness				$ 48.20
NI	240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)				$ 13.95
NI	297102800		Spacer-tube		Appelez-nous	-
NI	297111000		Standoff		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
