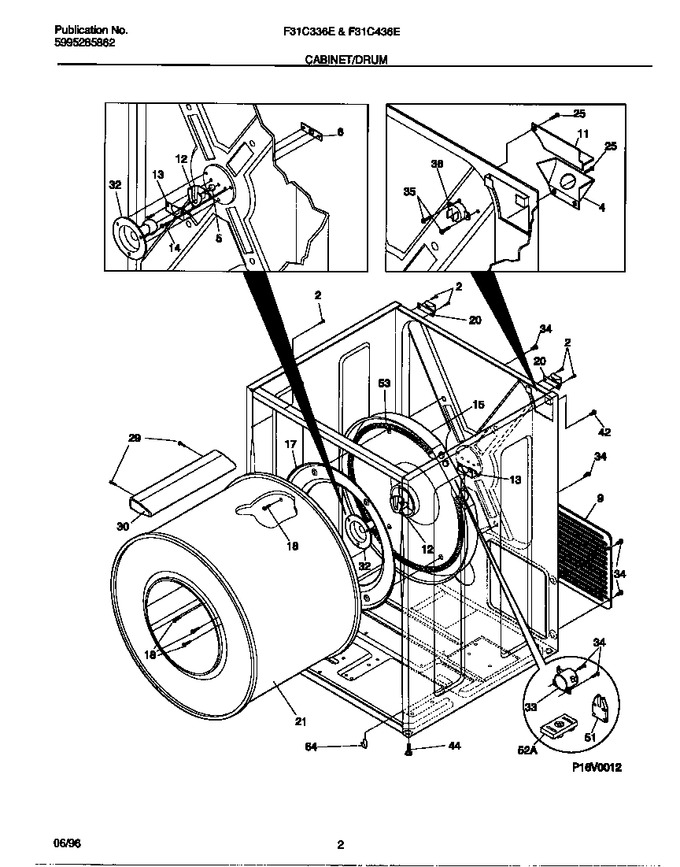

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Cabinet/drum
03 - Front Panel/lint Filter
04 - Controls/top Panel
05 - Motor
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 3281040 | Bracket-cord |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip-ball |
|
$ 17.01 | |||||
| 9 | 5303281018 | Panel-access |
|
- | |||||
| 11 | 5303211428 | Cover-term Block |
|
$ 44.15 | |||||
| 12 | 131825900 | Bearing-shaft (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket-bearing (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw-bracket, 10-16b X 1.375, Cr/sq Drive |
|
$ 12.76 | |||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 131168200 | Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375 (Replaces: 131477000) |
|
Immediately | $ 14.18 | ||||
| 20 | 131469100 | Bracket-hinge |
|
$ 44.84 | |||||
| 21 | 134138400 | Drum Assy (Replaces: 5303283284) |
|
$ 591.10 | |||||
| 25 | 5303015671 | Screw |
|
- | |||||
| 29 | 131382300 | Screw-vane, Quadrex Head, 10-14 X 1.00, Special |
|
Immediately | $ 13.46 | ||||
| 30 | 137552900 | Vane (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 32 | 131777700 | Shaft Assy (Replaces: 131378400) |
|
Immediately | $ 71.87 | ||||
| 33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| 34 | 131243700 | Screw, Pan Head, 8-18ab X 0.3758 Cr/sq Drive |
|
$ 3.36 | |||||
| 35 | 08010804 | Screw, Pph B St/z, 6-20 X .19 |
|
- | |||||
| 36 | 134120900 | Thermal Limiter (Replaces: 5303209192) |
|
Immediately | $ 13.21 | ||||
| 44 | 131527400 | Foot-cabinet |
|
$ 0.95 | |||||
| 51 | 131472100 | Insulator-heater Hsg |
|
$ 60.01 | |||||
| 52 | 3202786 | Block-terminal,heater Hsg |
|
$ 64.49 | |||||
| 53 | 5300622032 | Coil-heater |
|
Immediately | $ 37.46 | ||||
| 64 | 131353500 | Clip, Cabinet Bottom |
|
- | |||||
| *75160 | 5303281153 | Rear Bearing Kit, Includes 5, 6, 12, 13, 14, 18, 32 |
|
Immediately | $ 46.64 | ||||
| 15A | 131553900 | Heater-hsg Assy |
|
Immediately | $ 96.91 | ||||
| 15B | 131505700 | Seal-heater Housing (not Illustrated) |
|
- | |||||
| 42A | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 42B | 134154100 | Screw-ground Cab, Hex Washer Head, 10-32t X 0.375, Serrlocking Hd (Replaces: 131301100) |
|
$ 13.46 |
