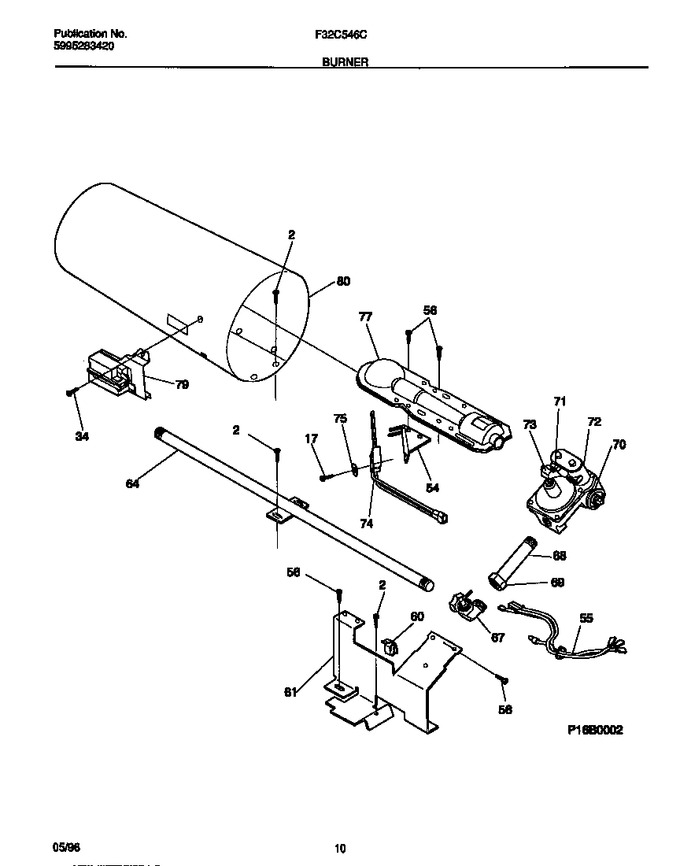

06 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pph B St/z, 8-18 X .31			Immediately	$ 14.18
17	3281178		Screw-ignitor, Pth B St Head, 8-18 X .812		Appelez-nous	-
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
54	5303281149		Bracket-ignitor				$ 30.61
55	5303281137		Harness-gas Valve		Appelez-nous	-
56	131243800		Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive				$ 10.46
60	3281126		Clip-wiring, Gas Bracket		Appelez-nous	-
61	5303281145		Bracket-burner		Appelez-nous	-
64	08015271		Pipe		Appelez-nous	-
67	131498500		Valve-shut Off		Appelez-nous	-
68	5303212837		Union, Male Connector, Brass		Appelez-nous	-
69	08015194		Nut-union, Hex		Appelez-nous	-
70	5303281147		Valve - Gas		Appelez-nous	-
71	5300622602		Coil-secondary		Appelez-nous	-
72	5308015680		Coil-booster		Appelez-nous	-
73	3201241		Orfice, Natural Gas		Appelez-nous	-
74	5303937186		Ignitor Assy   (Replaces: 5303281151)				$ 80.61
75	3201209		Washer		Appelez-nous	-
77	131361100		Burner Assy		Appelez-nous	-
79	5303281135		Sensor			Immediately	$ 102.06
80	3201240		Tube-burner Assy		Appelez-nous	-
*35204	131411100		Lp Gas Conv Kit		Appelez-nous	-
*35205	08015112		Cap-pipe		Appelez-nous	-
